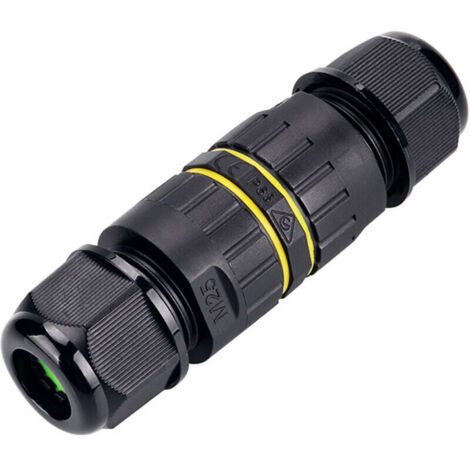

external cable connectors IP68 waterproof junction box External box for 3-pin cable φ5-9 mm, model no. EW-M25-3P (5-9 mm)

~~£27.96~~

Of which environmental contribution £0.01 including VAT.

Sold by CHAO WORLDWIDE

Product information

Description

General Description

The IP68 Waterproof External Cable Connector Junction Box is designed for outdoor applications, providing optimal protection against moisture and dust. With its robust design, it is ideal for connecting outdoor lighting, underfloor heating, photovoltaic solar panels, and for repairing or extending power cables.

Technical Specifications

Model: EW-M25-3P
Number of Pins: 3 pins
Wiring Range: 5-9 mm
Maximum Voltage: 450 V
Rated Current: 40 A (for 2/3/4 pins)
Wire Cross-Section: 0.5-6 mm² (for 2/3/4 pins)
Operating Temperature: -40℃ to 105℃ (-40℉ to 221℉)
Protection Rating: IP68
Size: 100 x 30 mm

Installation

Easy to install, simply screw the connector in to ensure a perfect seal and connect the appropriate wiring.

Use

This connector is ideal for applications such as:

Outdoor lighting
Underfloor heating
Photovoltaic solar panels
Repair and extension of power cables

Other information

Material: PA66 and brass
Package contents: 2 x cable connectors

Features

Brand
XISRENS
Length
1 cm
Height
10 mm
Power
1 W
Voltage
1 V
