Extractor fan System Silent Escudo Silver 100 M

Product out of stock

Product information

Description

General description

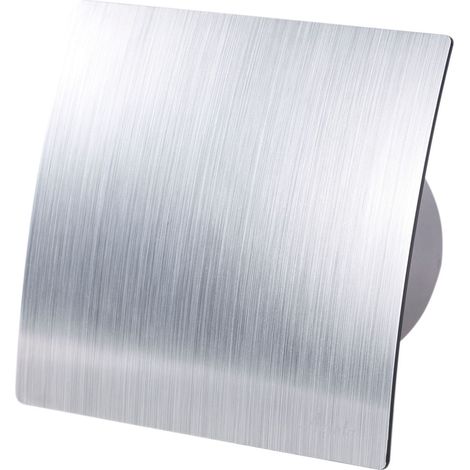

The Extractor Fan System Silent Escudo Silver 100 M is designed for efficient ventilation in various settings. With its sleek silver front panel made of durable ABS plastic, this fan combines functionality with modern aesthetics.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal size: 100 mm

Speed levels: 1

Wattage: 5 W

Revolutions per minute: 1900

Max. airflow rate: 75 m³/h

Sound pressure level Lp-3m: 26 dB(A)

Total pressure Pmax.: 26 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 100 mm

Front cover dimensions: 160 x 160 x 30 mm

Total depth: 118 mm

Weight: 0.7 kg

Installation

Mounting options: wall or ceiling

Application: direct connection to the ventilation shaft

Usage

Features an adjustable shut-off timer (3-30 min)

Equipped with a motion sensor that automatically turns the fan on when movement is detected and off after the pre-set time expires

Features

Brand
AWENTA
Colour
Grey
Width
10 cm
Power
5 W
Power source
Corded
With integrated lighting
No
With timer
Yes
Max. flow rate
75 m³/h
Intended use
Indoor
Diameter
10 cm
Wall mounting possible
Yes
Misting function
No
Ionisation function
No
IP rating
IPX4
Double-sided blades
No
Material
Acrylonitrile butadiene styrene (ABS)
Oscillating
No
Weight
0.7 kg
Depth
11.8 cm
Noise level
26 dB
On castors
No
Remote control included
No
Fan type
Ceiling fan
ManoMano Reference
ME51308487
MMID
865443788326
Product code
KWS100MPES
EAN
0745203006021
