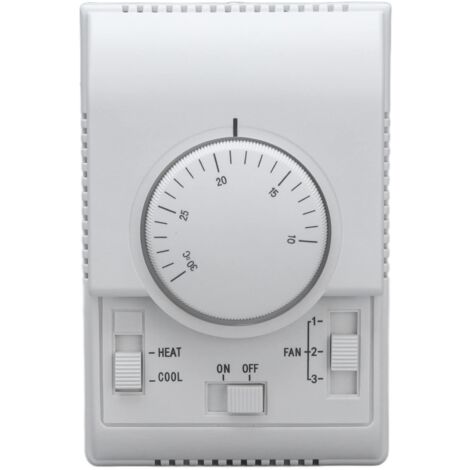

Fan Coil Temperature Controller, Central Air Conditioning Thermostat, 2-Way Mechanical Control Switch, 110-220V Air Conditioner
You may also like
Compare with similar items
Product information
Description
Specifications:
Item Type: Central Air Conditioning Thermostat
Material: ABS
Sensor: AC801 A: Inflatable Membrane, AC801 C: Thermistor
Voltage: 110-220V/AC, 50/60Hz
Rated Current: 1A
Constant Temperature Range: 10~30
Temperature Deviation: 1℃ to 25℃
Material & Color: Base, Cover & Pull Plate: White ABS Plastic, Pull Switch: White
Relative Humidity: <92% (non-condensing)
Application: Used in commercial and residential buildings. It can control the central air conditioning terminal coil motor and water valve for heating and cooling. The measured temperature is compared with the set temperature by the logic circuit. When the relative temperature difference is greater than 1℃, the fan or solenoid valve starts automatically, and when the room temperature reaches the set temperature, the fan or solenoid valve closes automatically.
Package Contents:
1 Thermostat
2 Screws
1 User Manual
Note:
Environmental Conditions: -20℃～55℃
【Multiple Operating Modes】 Multiple operating modes and wiring methods are available. Optional functions include single wire (valve stops while fan does not stop) or double wire (valve stops and fan stops).
【Built-in External Installation】It adopts built-in external installation, a standard 86 type installation box, easy to install.
【Long Life】The thermostat contact is more than 100,000 times at 220V and full load, and the manual operation switch is more than 60,000 times.
【Stable Performance】It offers a beautiful appearance, comfortable hand feeling and stable performance. The temperature sensing component adopts precise metal bellows.
【Various Rocker Switches】Rocker switches are power switches (ON or OFF); working mode switches (HEATING or COOLING); FAN wind speed switch (low speed 1, medium speed 2, high speed 3)
Features
- BrandBEIJIYI
- ColourWhite
- Height10 cm
- Width2 cm
- Length1 cm
