Product information

Description

General description

The Fan Coil Temperature Controller is a central air conditioning thermostat designed for both commercial and civil buildings. It features a 2-way mechanical control switch that regulates the terminal coil motor and water valve for heating and cooling applications. The thermostat operates within a constant temperature range of 10 to 30 degrees Celsius, ensuring optimal climate control.

Technical specifications

Item Type: Central Air Conditioning Thermostat

Material: ABS Plastic (Base, Cover & Pull Plate: White)

Sensor: AC801 A (Inflatable Membrane), AC801 C (Thermistor)

Voltage: 110-220V/AC

Frequency: 50/60Hz

Rated Current: 1A

Temperature Deviation: 1℃ to 25℃

Relative Humidity: <92% (No Condensation)

Environmental Conditions: -20℃ to 55℃

Service Life: Over 100,000 cycles at 220V and full load for thermostat contact; over 60,000 cycles for manual operation switch

Installation

The thermostat features an external embedded installation design, compatible with standard 86 type installation cassettes, making it easy to install.

Usage

The thermostat can operate in multiple working modes with different wiring methods available. Optional functions include single wire (valve stops while fan continues) or double wire (both valve and fan stop). The device automatically activates the fan or solenoid valve when the temperature difference exceeds 1℃ and deactivates them once the set temperature is reached.

Other information

Package List: 1 x Thermostat, 2 x Screws, 1 x User Manual

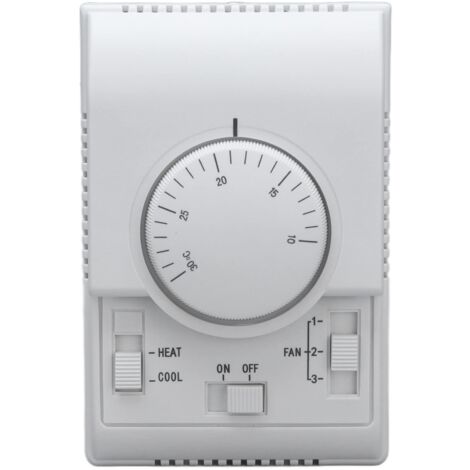

Rocker switches include power switches (ON or OFF), working mode switches (HEATING or COOLING), and FAN wind speed switches (low speed 1, medium speed 2, high speed 3)

Features

Brand
TINOR
Thermistor component type
NTC
Type of connection
Plug-in
ManoMano Reference
ME94070945
MMID
138426520315
Product code
RN05929
EAN
9458510915610

Fan Coil Temperature Controller, Central Air Conditioning Thermostat 2 Way Mechanical Control Switch Conditioner 110-220V
