Farm temperature control kit 100-240V Type K thermostat Thermocouple Thermocouple Relay and 25A solid-state relay

Features:

1. ACCESSORIES INCLUDED: Heater temperature control set, including a thermostat, type K thermocouple, heat sink, and solid-state relay, convenient and practical.
2. GOOD PERFORMANCE: The thermostat adopts industrial-grade self-tuning PID technology, which provides fast temperature control, quick response, minimal overshoot, and high accuracy.
3. EXCELLENT PROBE: The temperature controller probe is made of a stainless steel shell with a resin seal, waterproof and rustproof, and has a long service life.
4. EASY OPERATION: This multifunctional controller features a dedicated microprocessor switching power supply and SMT, intelligent temperature control, and simple operation.
5. MULTIPLE USES: Widely used in agricultural livestock farming, poultry houses, electric power generation, the chemical industry, injection molding, the food industry, incubators, ovens, and other equipment.

Specifications:

Item Type: Farm Temperature Control Set
1. Thermostat (long type)
Measurement accuracy: ±0.5% FS
End-to-end compensation tolerance: 0-50℃, can be modified via software ±2℃
Resolution: 14 bits
Sampling period: 0.5 seconds
Power supply: AC 100-240V 50/60Hz
Process value (PV), set value (SV)
Output alarm and auto-tuning indication: LED indication
PIN control: including ON/OFF, step PID and continuous PID
Self-tuning control: Supported
Proportional band (P): 0 at full scale (when ON/OFF control is set to 0)
Detection temperature range: 0-400 ℃
Insulation resistance: > 500 MΩ (500 V DC)
Insulation resistance: 1500 V AC per minute
Insulation resistance: Power consumption Operating environment: 0-50 ℃
Non-corrosive gaseous environment 30-85% RH
Appearance size: approx. 48 x 48 x 110 mm / 1.9 x 1.9 x 4.3 inches
Applications: electric power, chemical industry, injection molding, packaging, food, incubator, oven, heating control, etc.
2. Thermocouple probe cable K
Length: approx. 1 meter/3.3 feet
Sensor diameter: approx. 4.5 mm/0.18 inches
Temperature range: 0 to 400 ℃
Insulation: fiberglass
Outer shield: insulating shield
3. Solid state relay
Output voltage range: standard type
Input voltage: DC 3-32 V
Output voltage: 24-380 V AC
4. Heat sink
Material: aluminum
Size: approx. 80 x 49 x 50 mm / 3.1 x 1.9 x 2 inches

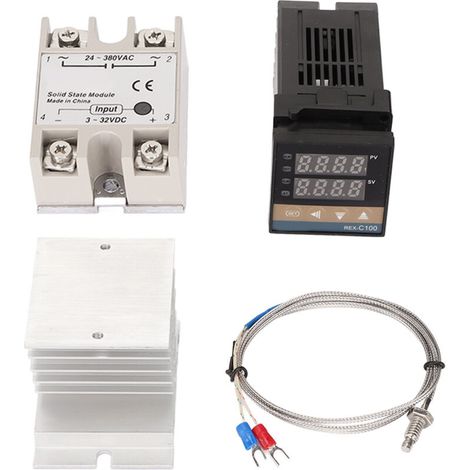

Package List:

1 x Thermostat

1 x Thermocouple

1 x Heat Sink

1 x Relay

1 x User Manual (Chinese and English)

1 x Thermostat Bracket
