G1/2 DN15 Automatic Drain Valve, Electronic Automatic Timed Drain Valve for Air Compressor Condensate Management(AC/220V)

~~£61.19~~

Product information

Description

General description

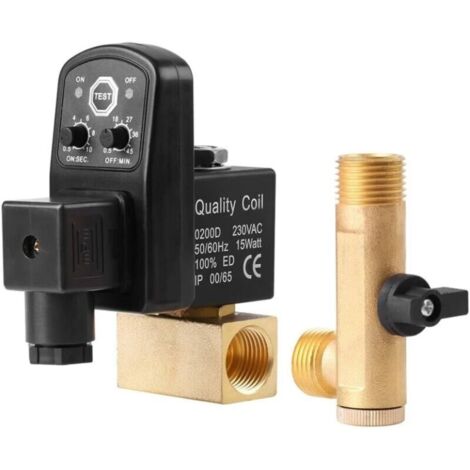

This G1/2 DN15 Automatic Drain Valve is a reliable and high-quality solution for managing condensate in air compressor systems. It is designed to maintain optimal operation of compressed air treatment equipment by automatically discharging condensate at programmed intervals, thus minimizing wasted compressed air.

Technical specifications

Voltage: AC110V, AC230V (Optional)

Valve Material: Brass

Valve Type: Separate

Working Modes: Direct Acting

Interval (OFF): 0.5-45 min

Discharge Time: 0.5-10 sec

Thread: G1/2 (DN15)

Thread Outer Diameter: Approx. 20.6 mm

Pressure: 0-1.6 Mpa

Fluid: Air, Water

Fluid Temperature: -5℃~80℃

Fluid Direction: One Way

Compatibility and accessories

G1/2 thread is widely used and can fit most air compressors.

Installation

Connect the valve to the air compressor system using the G1/2 thread.

Usage

Program the valve to discharge condensate at desired intervals.

Adjust the valve opening time (0.5 to 10 seconds) and closing time (0.5 to 45 minutes) as needed.

Other information

Package includes: 1 x Drain Valve

Note: AC230V can also be connected to AC220V.

Features

Brand
GOTRAYS
Length
100 mm
Width
100 mm
Pressure
1.6 bar
Material
Brass
