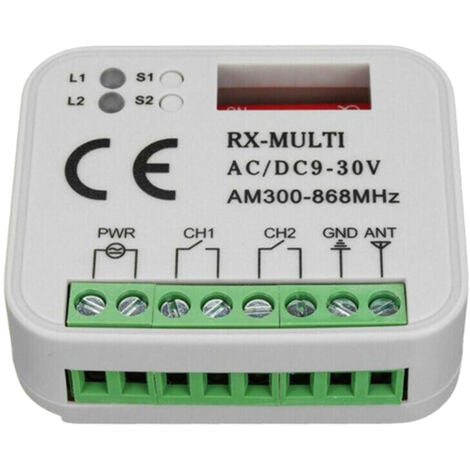

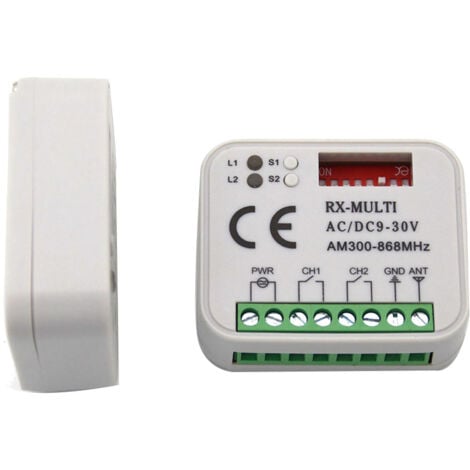

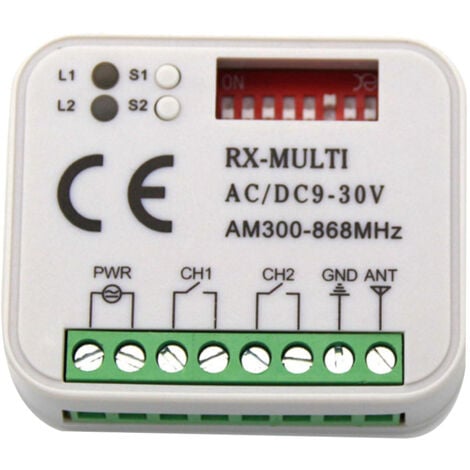

Garage Gate Remote Receiver 433 868MHz RX MULTI 300-900MHZ AC/DC 9-30V with Control

Specifications: 1) Distance: 50-150 meters.
2) Very mini size: 5.5cm x 4.5cm x 1.0cm.
3) One receiver can work with 400 codes.
4) It don't interference other remotes and receivers.
5) selector: With 8 dip switches user can make different combination for different remote . Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it's better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.

Color: white + black
Material: ABS
Programming a new remote
1) Select the correct for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz remote controls, just move Dip-switch 7 UP.
2) Press the learn button. The will LED turn on.
3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4) Repeat for another button.
5)The 2-nd channel programming procedure is the same.
Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered
Compatible :
All 433.92mhz fixed code remotes.

Package Contents:
1 x Receiver
3 x Remote Control

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
