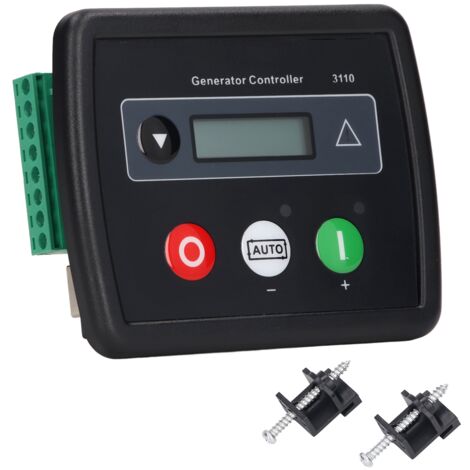

Generator Set Controller Backlit LCD Display Programmable DSE3110 Electronic Generator Controller Module for Diesel
Sold by STUNACY
You may also like
Compare with similar items
Product information
Description
1、Manual or Automatic: The DSE3110 can be used as a manual or automatic start module for single generator set applications and forms part of the DSE Next Generation Control Module.
2、Backlit LCD Display: This diesel generator genset controller comes with a backlit LCD display that provides a clear indication of the engine status at all times.
3、Multifunctional: This generator set controller monitors engine speed, frequency, voltage and operating hours, and displays engine warnings and shutdown status.
4、Easy to Use: The generator controller module includes 6 digital inputs and 4 outputs. The module can be programmed using the front panel or using the DSE Configuration Suite PC software.
5、Application: Designed for use with both electronic and non electronic engines, this electronic generator controller module provides advanced engine monitoring and protection functions.
Item Type: Generator Set Controller
Material: ABS
DC Power Supply: 8-35V, 0.5A
DC Output: 30V, 2A
DC Input: 30V Maximum
AC Voltage Input: 277 Vac 50/60 Hz
CH AC Generator: 30V, 2.5W Maximum
Can Port: 5V Maximum
MAG Pickup: 70V, 10KHz Maximum
Use: Universal in Ships, Power, Communications, Where Generators Are Needed
Gross Weight: Approx. 163g/5.7oz
1 x Generator Set Controller
2 x Accessories
1 x Manual
Features
- BrandSTUNACY
- Length12 cm
- Width11 cm
- Height6 cm
