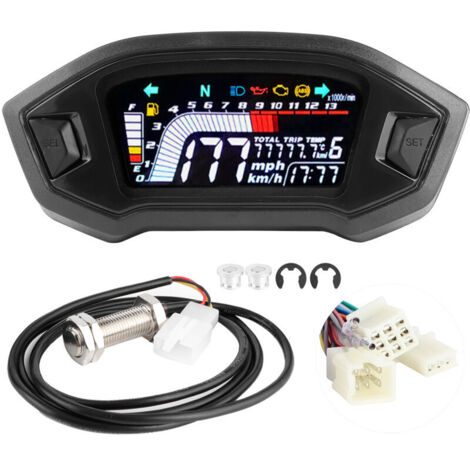

Generic Waterproof Motorcycle Speedometer for 1, 2, 4 Cylinder Motorcycles, Clear LCD Screen, Versatile, for Motorcyclists.

1. Applicable to universal motorcycle models. Suitable for 1, 2, and 4-cylinder motorcycles.
2. Made of high-quality ABS material, hard, durable, corrosion-resistant, and has a long service life.
3. The LCD screen makes it easy and clear to display information and can show detailed speed and direction information.
4. Supports speed display in km/h and mph; the speed display range is 0 to 199 km/h (miles). The odometer reads from 0 to 999,999 kilometers (miles) and indicates a distance of 999.9 km (miles). The speed display range is between 0 and 13,000 RPM.
5. Compact structure, easy to assemble, easy to use, bringing you more convenience.

Technical Data:
Condition: 100% Brand New.
Item Type: Motorcycle Instrument
Material: ABS
Color: Black
Time: 24 Hours
Oil Level: 6-Part Display
Power Supply Voltage: DC8-12V.
Speed Display: km/h, mph
Gear Position: 1/2/3/4/5/6 N.
Speed Display Range: 0-199 km/h (miles)
Internal Display: Odometer Display: 0-999999 kilometers (mi)
Odometer Display Unit: 0.1 km
Distance to Odometer: 999.9 km (miles)
Odometer display unit: 0.1 km
Speed range: 0-13,000 rpm
Dimensions: approx. 200 x 80 x 100 mm / 7.9 x 3.1 x 3.9 inches
Instructions:
Wallpaper settings: Use a password to open the wallpaper. (Metric and imperial background values must be adjustable)
Press and hold the left button to turn on the device and access the wallpaper settings interface. P000: Enter password 6610
4C1850:
1850 means circuit. Press and hold the left button; the bit unit will flash. Briefly press the left button +1, then press and hold the left button again to enter tens (0-9).
Tens will flash. Briefly press the left button +1, then press and hold the left button again to move to hundreds (0-9).
Hundreds will flash. Briefly press the left button +1, then press and hold. Press the left button again to move to thousands (0-9).
Thousands will flash. Briefly press the left button +1 (0-2), then press and hold the left button again to access the magnet number setting interface.
4 means the number of magnets. Briefly press the left button +1, then press and hold the left button to save. After saving, briefly press the left button to access the metric system interface.
1-01: Metric
1-02: Imperial system, press and hold the number 1 until 001 flashes, briefly press the left button to move to 2, press and hold the left button to save. After saving, briefly press the left button to access the quick interface.
2-002: Speed 166 Hz = 10 x 1000 rpm, 2-004: Speed 333 Hz = 10 x 1000 rpm, press and hold the left button until the number flashes, briefly press the left button to change, press and hold the left button to save, then briefly press the left button to enter the fuel interface. 3-002: Dual-line fuel
3-003: Three-line fuel, long press left button to flash, short press left button to toggle, long press left button to save, and short press left button to access the instrument's main interface.
Wiring Method:
9-PIN
Light Blue: Right turn, 12V positive control, LCD screen.
Yellow/Black: Speed signal
Red: Battery (normal power, 12V positive)
Blue: High beam, 12V positive control, LCD screen
Green/White: Water temperature signal
Green: 12V negative
Orange: Left turn, 12V positive control, LCD screen
Blue/White: Fuel signal
Black: 12V positive
6-PIN
Pink: 1 speed, negative control, LCD screen
Blue/Red: 2 speeds, negative control, LCD screen
Green/Black: 3 speeds, negative control, LCD screen
Yellow/Red: 4 speeds, negative control, LCD screen
/White: 5 speeds, negative control, LCD screen
Green/Red: Neutral, negative control, LCD screen
3PIN
Red/White: Positive sensor
Green: Negative sensor
Black and White: Sensor signal
Round header:
/Red: Engine fault, negative control, LCD screen
Gray: 6 speeds, negative control, LCD screen

Package List:
1 x Motorcycle instrument
1 x Speed sensor
4 * Accessories

Note:
1. Please check the size and make sure it meets your needs.
2. Due to manual measurement, there may be a 0.5 to 1 inch error. (1 inch = 2.54 cm)
3. Depending on factors such as weather, lighting conditions, and even different screen resolutions, the photo may inevitably show slight color variations. Please note that this is not a quality issue.
