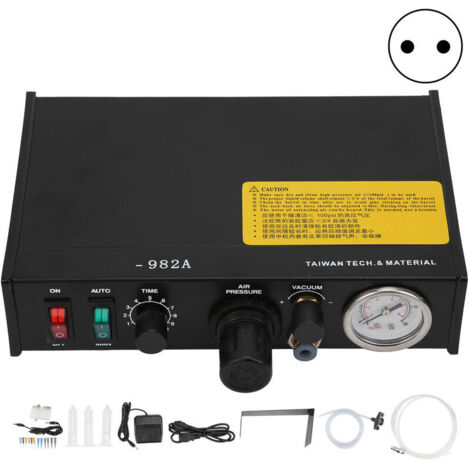

Glue Dispenser, Automatic Glue Filling Machine AC220-240V 982A High Precision Dispensing Controller for Electronics, Lighting (EU Plug) Glue Gun
Of which environmental contribution £0.01 including VAT.
Buying for your business?
Negotiated prices excl. VAT up to -20%
Sold by LinzGain Sarl
You may also like
Compare with similar items
Product information
Description
Features:
1. The dispenser is used to precisely point, inject, and apply glue, paint, and other liquids in the product process at each precise location. 2. The glue dispenser is made of aluminum alloy with a plastic rim, making it rust-resistant, corrosion-resistant, and durable. 3. The dispenser supports automatic synchronization, allowing you to set the time needed to achieve perfect results based on your work requirements. 4. The dispensing machine has a full range of accessories, needles of different specifications, and multiple replacement cartridges to meet various needs. 5. Commonly used in manufacturing industries such as electronics, lighting, automotive, industrial, and construction.Specifications:
Item Type: Glue Dispenser Material: Aluminum Alloy + Plastic Model: 982A Automatic Timing: Drip time is set to 0.01S; 0.1S; 0.2S; 0.3S Manual Timing: Continuous or One-Touch Foot Pedal Repeat Accuracy: ±0.5% Size: Approx. 240x155x58mm/9.4x6.1x2.3in Height Weight: Approx. 2.25kg/4.96lb Input Power Supply Voltage: AC220-240V 50Hz Internal Voltage: 24VDC Minimum Drip Volume: 0.01ml Inlet Air Pressure: 2.5-7bar (35-100psi) Outlet Pressure: 0.1-5.5bar (1-78psi) Installation: 1. Put dried and filtered air into the air inlet hose. 2. Put the materials and associated parts into the syringe at the same time. 3. Insert the power cord, the foot switch, and the quick-connect plug connecting the combined head hose to the corresponding ports. How to use: 1. Turn on the power switch; the "ON" indicator light will illuminate. 2. Turn the air pressure regulator knob until the pressure gauge indicates the required air pressure value. 3. Set the mode switch to MAN or AUTO as needed, and you can work in manual or automatic mode.
Package List:
1 x glue dispenser
3 x pistons
3x Dispensing Tube
1x Needle Assembly
12x Needles
1x Power Cord
1x Foot Switch
1x O-ring
1x Air Connection for Intubation Package includes: 1x User Manual 1x Bottle Rack
Note:
1. The maximum high-pressure inlet gas pressure should not exceed 7 bar (1000 psi) and the operating pressure of the glue machine should not exceed 5.5 bar (78 psi). If the operating pressure is above 4 bar, please use aluminum alloy connectors instead. 2. If possible, the glue used should be stored at a constant temperature of 5°C to ensure that the depth of the glue does not change much during use and for Avoid excessive concentration, which can lead to flow difficulties and prevent proper flow. When using, it must be diluted according to the manufacturer's instructions before use. 3. The rubber material must be thoroughly and uniformly stirred before work to ensure the same amount of dripping. 4. When working in AUTO mode, it is generally appropriate to set the air pressure inside the machine between 1 and 2.7 bars (15 and 40 psi). 5. When working in AUTO mode, depending on the actual situation, remove any remaining adhesive from the needle nozzle at the appropriate time. Once this adhesive has hardened, the needle will discharge and the reverse pump will not function. 6. In AUTO mode, the greater the vacuum tube's return air force, the better, but it is adjusted to the appropriate position according to the air pressure, the work cycle, and the size of the Drip-feed, etc. The air return is too significant; this will reverse the piston and destroy normal work. 7. At the end of the job, the syringe must be cleaned in time, otherwise it will be very difficult to disassemble the syringe once the rubber has hardened. Generally, the method for cleaning rubber material is simple. Put the parts concerned in the water from the windshield wiper for 5 to 10 minutes and the rubber material can be easily removed.Features
- BrandSNQ
- Pcs per pack1
- ColourBlack
- Length24 cm
- MaterialPlastic
- Weight2.2 kg
- Caulking gun useGlue
- ManoMano ReferenceME92565942
- MMID795961457774
- Product codeFD-20596
- EAN6032223854881
