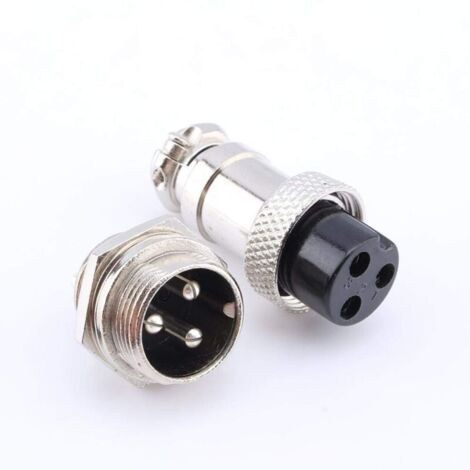

GX16-3 Pin Aviation Connector, 3 Pin Male/Female Metal Plug Panel Connector
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
Features:
- Professional GX16 socket
- Made of solid material, more durable
- One set including a male and female connector
Specifications:
- Voltage: 400 V.
- Current: 5 A.
- Ambient temperature: -50 ~ +70 °C.
- Relative humidity: up to 98% at +40 °C.
- Insulation resistance: not less than 1000 mΩ under normal conditions, not less than 20 mΩ after constant temperature testing.
- Test voltage: (50 Hz, RMS) 1500 V under normal conditions, 1200 V after constant temperature testing.
- Atmospheric pressure: 4.4 kPa.
- Vibration: Frequency is 10-100 Hz, acceleration is 100 m/s².
- Impact: Frequency is 60-80 times/min, acceleration is 250 m/s².
- Spin: Acceleration is 250 m/s².
- Type: 3-pin.
- Material: Metal.
- Color: Silver.
- Dimensions: 45 x 19 mm.
Contents:
1 x lot GX16 3 pin Screw type connector for aviation electrical socket
- Professional GX16 socket
- Made of solid material, more durable
- One set including a male and female connector
Specifications:
- Voltage: 400 V.
- Current: 5 A.
- Ambient temperature: -50 ~ +70 °C.
- Relative humidity: up to 98% at +40 °C.
- Insulation resistance: not less than 1000 mΩ under normal conditions, not less than 20 mΩ after constant temperature testing.
- Test voltage: (50 Hz, RMS) 1500 V under normal conditions, 1200 V after constant temperature testing.
- Atmospheric pressure: 4.4 kPa.
- Vibration: Frequency is 10-100 Hz, acceleration is 100 m/s².
- Impact: Frequency is 60-80 times/min, acceleration is 250 m/s².
- Spin: Acceleration is 250 m/s².
- Type: 3-pin.
- Material: Metal.
- Color: Silver.
- Dimensions: 45 x 19 mm.
Contents:
1 x lot GX16 3 pin Screw type connector for aviation electrical socket
Features
- BrandTEHTUY
- Warranty1 year(s)
- Height1 cm
- Amperage5 A
- Length1 cm
- MaterialMetal
- Number of terminals3
- Weight100 g
- Pcs per pack1
- Voltage400 V
- Audio & video cable typeXLR
- Connection port typeAntenna
- ManoMano ReferenceME98924614
- MMID528822177486
- Product codeZJL-mano-05255
- EAN6282768126077
