Hammer Mill 4 kW production volume max. 200 - 300 kg / h pellet production

⭐⭐⭐⭐⭐

The hammer mill grinds grain and wood chips quickly and effectively

by Wiesenfield

✅ Model: WIE-PM-2700

✅ Item: 10280326

⬇️ Key features

• Effective – crushes grain, straw, wood chips, alfalfa and similar raw materials for the production of pellets
• Powerful – engine with 4 kW reaches rotational speeds of 2800 rpm
• High-yield – depending on the raw material and moisture, the machine grinds 200 - 300 kg / h
• Optimal – fine grain sizes thanks to a sieve with dimensions of 510 x 200 mm and hole sizes of 4 mm & 6 mm
• Safe – stable base and controlled ejection via cyclone

Do you need excellent raw material made of grain, straw, alfalfa or wood flakes for your pellet press to produce pellets? Then make it yourself with the hammer mill from Wiesenfield! The powerful machine shreds a wide variety of materials into fine grain sizes that you can easily process. In this way, you get exactly the regrind you need for animal feed production or for the production of wood pellets.

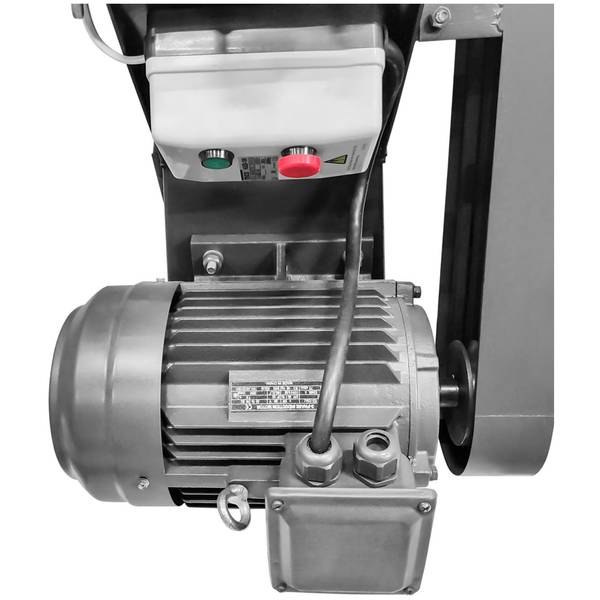

With an output of 4 kW, the motor drives the 16 hammers in the mill, which reach a rotational speed of 2800 rpm. Thanks to the first-class performance values, you can achieve a production rate of 200 - 300 kg / h with the hammer mill. Note that the amount depends on the type of grain or raw material and the moisture content of the material. For best results, the humidity should not exceed 15%.

The centrifugal forces that act on the grist during crushing drive the grains against the outer sieve. The size of the holes in the sieve determines how coarse your grinder will be. Hole sizes of 4 and 6 mm are available for the hammer mill. The finished grist is specifically filled with a cyclone.

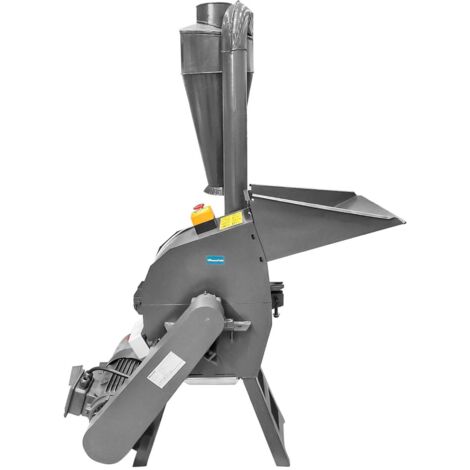

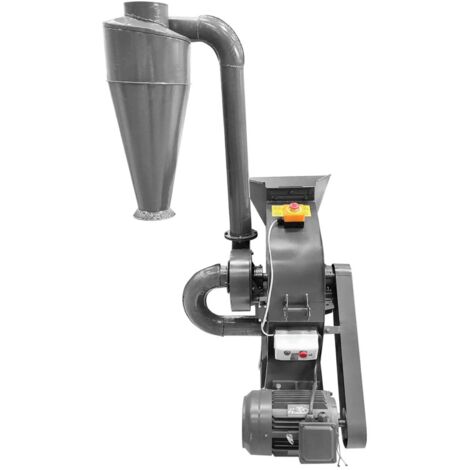

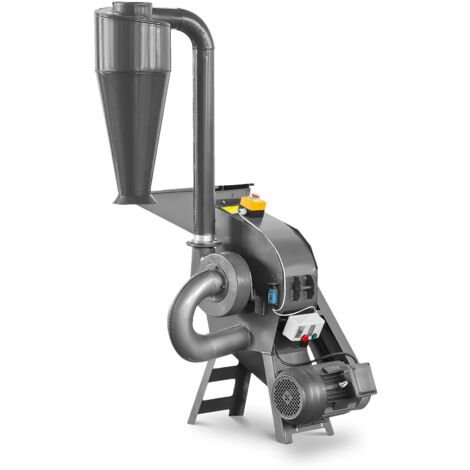

The hammer mill for pellet production impresses with its easy handling, a large filling funnel and a robust construction, thanks to which you can also produce and process large quantities of ground products. The stable footprint guarantees you safe production at all times.
