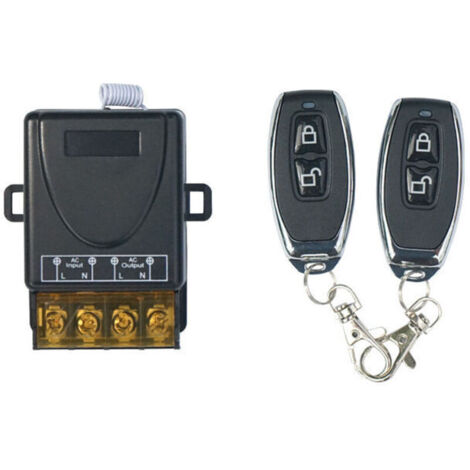

High Power Wireless 433MHz Remote Control Switch, RF Remote Control AC 220V/240V/110V 30A for Lights, Water Pumps, Household Appliances, Agricultural Irrigation
You may also like
Compare with similar items
Product information
Description
General Description
High-power wireless remote control switch operating at 433MHz, designed to control electrical appliances such as lights, water pumps, and other household equipment. This device offers stable and reliable performance, with a receiving sensitivity greater than -105dBm. Thanks to its strong signal, it can penetrate walls, floors, and doors, allowing remote control up to 50 meters (164 feet) without obstacles.
Technical Specifications
Operating Voltage: AC 85V~265V
Maximum Current: 30A
RF Frequency: 433MHz
Supported Encoding: EV1527 Learning Code
Receiving Sensitivity: > 97dBm
RF Operating Mode: ASK superheterodyne wireless reception
Operating Temperature: -30~+80°C
Reception Range: Over 50 meters in open space
Standby Current: <5 mA
Compatibility and Accessories
Each receiver can store approximately 20 transmitters.
One transmitter can control multiple receivers (the transmitter must be paired with the receiver).
Installation
Press the learning button on the receiver 3 times.
Wait 3 seconds.
Press the ON button on the remote control.
Press the OFF button on the remote control.
Installation successful.
Usage
The product has 3 operating modes: momentary, toggle, and latched.
The operating mode is adjustable according to your needs.
Use the ON button to turn on and the OFF button to turn off.
Other information
High-quality relays can be used more than 100,000 times.
The remote control system is based on EV1527 technology, ensuring increased stability.
An antenna is present on the receiver to improve signal reception.
Features
- BrandTEHTUY
- Length1 cm
- Width1 cm
- Height1 cm
- Voltage85 V
