High Precision 5m Grating Rule Sensor Linear Scale Encoder for DC5V Lathe with Cable Linear Motion Parts (250)
You may also like
Compare with similar items
Product information
Description
Specification:
Item Type: Linear Scale Encoder
Connector Type: DB9
Input Voltage: 5VDC
Accuracy: 5μm
Resolution: Approx. 0.001 mm/0.00004 inch
Grid Pitch: 0.02 mm
Cable Length: Approx. 3 meters / 9.8 feet
Notes:
1. Regularly check that the installation connection screws are not loose.
2. To extend the service life of the dustproof sealing strip, a thin layer of silicone oil can be applied evenly to the sealing strip, taking care not to splash it onto the engraved glass grid.
3. To ensure the reliability of the grid sensor, the grid and the indicator grid can be cleaned and wiped with a 50% ethanol mixture at regular intervals to keep the glass grid clean.
4. The grid ruler sensor must be strictly protected from strong vibrations and impacts to avoid damaging the grid ruler. If the grid rule breaks, the grid rule sensor will fail.
5. Care must be taken to prevent the grid rule from being contaminated by oil and water, so as not to damage the grid rule line distribution and cause measurement errors.

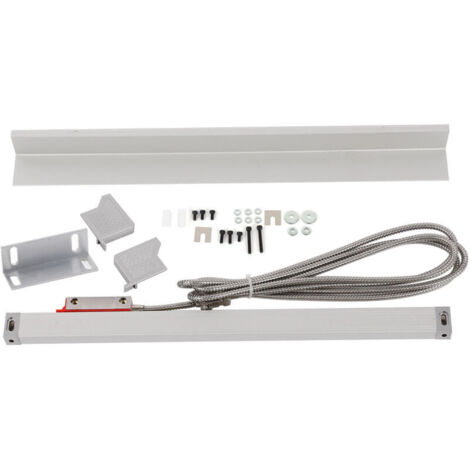

6. The grid sensor should try to avoid operating in a highly corrosive environment, so as not to corrode the chrome layer of the grid and damage the grid quality. Package List: 1 x Grid Ruler, 8 Screws, 11 x Gaskets, 2 x Plastic Gaskets, 2 x U-Shaped Deflectors, 2 x Plastic Deflectors, 1 x L-Shaped Bracket, 1 x Protective Cover
Features
- BrandTEHTUY
- ColourBlack
- Pcs per pack1
- Height1 cm
- Width1 cm
- Length1 cm
- MaterialMetal
- Type of accessories for measuring & detection toolTarget
- ManoMano ReferenceME99018005
- MMID606125029090
- Product codemano-HWLX-09588
- EAN6282768384828
