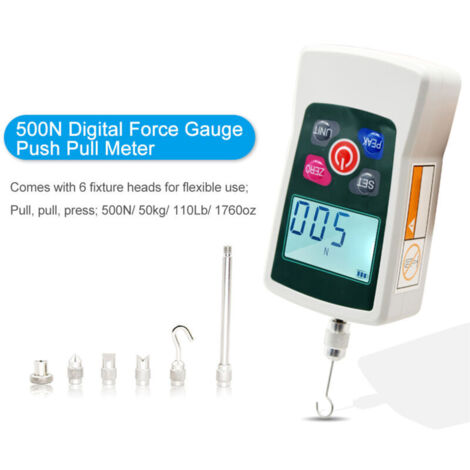

High-Precision Digital Dynamometer for Tensile and Compression Testing Units (N, kg, lb, oz) Real-Time/Peak/First Peak Modes for Quality Control (500N)

Backlit LCD Screen for Enhanced Visibility

The Digital Force Gauge is equipped with a convenient backlit LCD screen, ensuring optimal visibility and readability in various lighting conditions. This feature allows you to easily view force measurements, even in dimly lit environments or when direct lighting may be limited.
The backlit screen provides a clear and bright visual interface, allowing you to easily read measured force values, test parameters, and other important information. Whether you're working in dimly lit areas or performing tests in challenging lighting conditions, the backlit LCD screen ensures you can accurately and efficiently monitor force readings. src="https://cdn.manomano.com/external-resources/AAHKMJXYDAFdJAOAIMEbOAchlkWZ0oakZn_uVZ0mPidMNbILvCvspZ4oG3fPgIqc1P26RdPiG8KHKUtblW5_ ULKvLD1OHzwX-jolGWPZGyLZfPrwkppAnX5nbQXUdLU0NcLky3WFT2s35Pm8tw3-gPU2J_lMH7cJeeQeCEY9KtUrNuhqLINkTt7ESjpHNiVjgdx6OzvVgFRrROit4q0-sgyr" alt="5" data-orig-src="https://m.media-amazon.com/images/S/aplus-media-library-service-media/b2308ca5-fef0-4b9d-a647-86dd462cf955.__CR0,0,970,600_PT0_SX970_V1___.jpg">

Three selectable measurement modes: Real-time mode, peak mode, and first peak mode
Digital Force Gauge offers a versatile range of measurement modes, allowing you to choose the option best suited to your specific testing needs.

Real-time mode

In this mode, the force gauge continuously displays the real-time force being applied. It provides instant feedback, allowing you to monitor force changes as they occur.

Peak Mode

Peak mode captures and displays the maximum force reached during a test. This mode accurately identifies and records maximum force values, even if the peak only occurs for a short period. It is particularly useful for applications where measuring maximum force is of primary importance.

First Peak Mode

First Peak mode detects and displays the first force peak encountered during a test. It is designed to capture and highlight the first significant force peak, which can be crucial in certain test scenarios. This mode is commonly used in applications where the initial impact or resistance force is of paramount importance.
