Product information

Description

General description

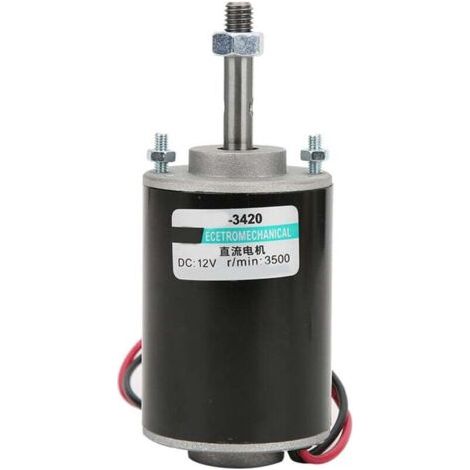

The High-speed, low-noise permanent magnet DC motor is designed for various applications including cotton candy machines, small cutting tables, grinders, and other mechanical equipment. With a rated power of 30W, this motor is also suitable for DIY generators, providing high-speed operation and smooth performance without noise.

Technical specifications

Item Type: DC Motor

Model: Thread XD-3420

Number of Poles: 2 Poles

Rated Power: 30W

Voltage: 12V

No-load Speed: 3500 RPM

No-load Current: 0.312 A

Rated Speed: 2400-3200 RPM

Rated Current: 2.4-3.1 A

Stuck Rotor Current: 2.76-3.37 A

Lifespan: 3000 hours (carbon brushes can be replaced)

Compatibility and accessories

Compatible with cotton candy machines and medical equipment

Package includes: 1x DC Motor

Usage

The motor supports CW and CCW control, allowing users to change the direction of rotation without disconnecting the wires, enhancing its practicality.

Features

Brand
SNQ
Height
60 mm
Width
60 mm
Length
150 mm
Material
Polyester
Number of terminals
2
Weight
0.51 kg
Power
30 W
Voltage
12 V
Type of current
Direct current
ManoMano Reference
ME92565702
MMID
296083773039
Product code
FD-20074
EAN
6032223849665

High-speed, low-noise permanent magnet DC motor CW CCW Mini brushed electric motors 30W 12V 3500RPM
