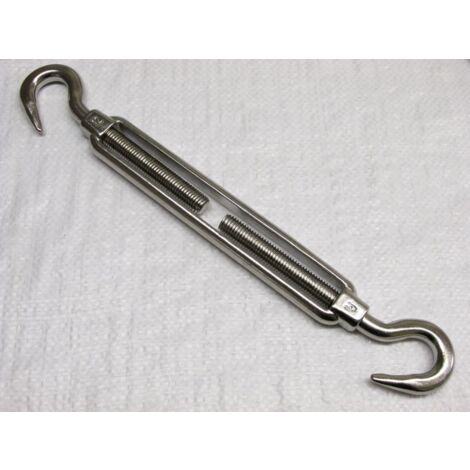

Hook Hook Turnbuckle Stainless Steel M12 (Open Body Wire Rope Rigging Screw)

Name: Hook Hook Turnbuckle Stainless Steel M12 (Open Body Wire Rope Rigging Screw)
Brand: SECUREFIX DIRECT
SKU: SFSSTHH12
Price: 13.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Open Body Turnbuckles with Hook and Hook are versatile rigging solutions made from 316 Grade Stainless Steel, providing excellent rust protection. They are suitable for various applications in the garden, marine, and sports industries, compatible with a wide range of products including rope, wire, rigging, and cables.

Technical specifications

Thread Diameter: 12MM

Metal: 316 Grade Stainless Steel

Available Codes and Specifications:

Code: SFSSTHH04 - Breaking Load: 122 KG, A: 4 MM, B: 67.3 MM, C: 104.8 MM, D: 142.6 MM, E: 16.2 MM, F: 6.8 MM

Code: SFSSTHH05 - Breaking Load: 193 KG, A: 4.7 MM, B: 78 MM, C: 127 MM, D: 176 MM, E: 20 MM, F: 8 MM

Code: SFSSTHH06 - Breaking Load: 275 KG, A: 5.7 MM, B: 101 MM, C: 160 MM, D: 230 MM, E: 25 MM, F: 9 MM

Code: SFSSTHH08 - Breaking Load: 499 KG, A: 8 MM, B: 130 MM, C: 209 MM, D: 305 MM, E: 34 MM, F: 14 MM

Code: SFSSTHH10 - Breaking Load: 775 KG, A: 10 MM, B: 162 MM, C: 252 MM, D: 380 MM, E: 43 MM, F: 14 MM

Code: SFSSTHH12 - Breaking Load: 1152 KG, A: 12 MM, B: 220 MM, C: 320 MM, D: 457 MM, E: 38 MM, F: 19 MM

Features

Brand
SECUREFIX DIRECT
Maximum load
1152 kg
Length
45.7 cm
Material
Stainless steel
Warranty
1 year(s)
