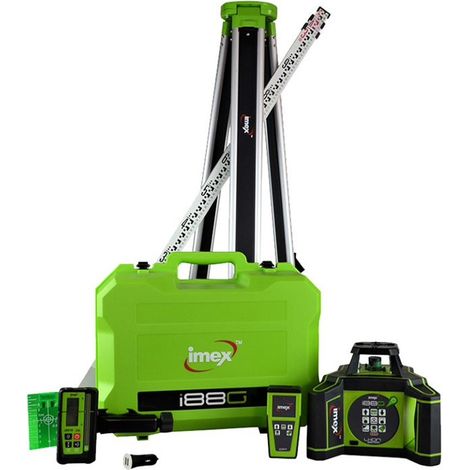

Name: Imex i88G Green Beam Rotating Laser Level Kit 16m Tripod LRX10 Receiver 5m Staff
Brand: IMEX
SKU: 012-IO88GSX10
Availability: OutOfStock

Product information

Description

General description

The Imex i88G Green Beam Rotating Laser Level Kit is designed for a variety of construction tasks, featuring self-levelling capabilities, a grade slope function, and scan mode for both horizontal and vertical applications. This kit includes a remote controller and a 9Ah lithium-ion battery, ensuring excellent value and versatility. The robust, water and dust-proof case protects the unit, while the fully enclosed laser diode guarantees years of reliable use.

Technical specifications

Self-levelling system with level sensor and stepping motor

Range: 600m

Accuracy: +/- 1.5mm @ 30 metres

Grade slope: Dual Grade up to 5° (8.8%) in X and Y axis

Battery: 9Ah lithium-ion with approx. 40 hours run time

Detection window: 90mm

Detection range: 300m radius

Drop test: 1.5m on concrete

Weight: Not specified

Compatibility and accessories

Compatible with LRX10 Digital Detector

Includes: LRX10 detector, USB cable, 9.0 Ah lithium battery, car charger, target plate, hard carry case

Includes SJA30 1.6m aluminium tripod

Includes 5m LS5 measuring staff

Installation

Easy setup with the included tripod and measuring staff

Plumb Spot feature assists in precise positioning over a point

Usage

Ideal for pipe layout and concrete slab falls

Scan mode allows for part beam rotation in various environments

Remote control panel enables operation up to 20m away for efficiency

Use with laser detectors for accurate levelling and survey work

Other information

Heavy-duty, waterproof, and shockproof design

Made in Germany

3-year warranty

Features

Brand
IMEX
Material
Aluminium
Light colour
Green
Range
600 m
Laser shape
Vertical
