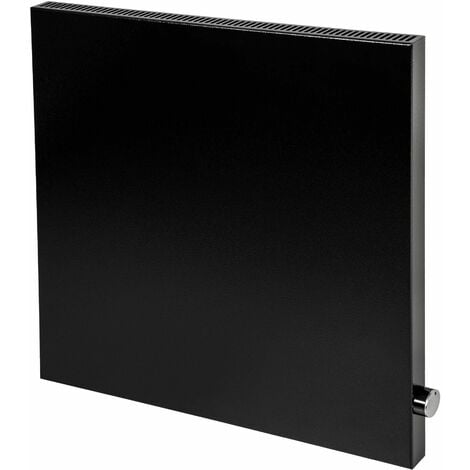

Infrared heater hybrid panel with thermostat - panel heater, bathroom heater, garage heater - 510 W

Reference: ME11630838

Out of stock

View full description
£129.99
£129.99 / unit
  • Free delivery (postcode specific)
Infrared heater hybrid panel with thermostat - panel heater, bathroom heater, garage heater - 510 W
£129.99

Description

Function of the convection in the hybrid infrared heater: The air is heated by a thin radiator, producing a pleasant warmth throughout the room. That way, the air is also heated in contrast to normal infrared heaters which merely heat objects and bodies. Function of the infrared element in the hybrid infrared heater: The front part of this heater, the infrared element, supplies sun-like warmth that pleasantly warms the body and surfaces directly. The biggest advantage of infrared technology is the immediate warmth the device emanates after it is switched on. The infrared heat can be felt within seconds, while the air is simultaneously heated by means of convection.

Highlights

  • hybrid panels are the next generation of IR heaters
  • high performance thermal radiators
  • protection class IP20 (No protection against water)
  • wall mount included
  • also suited for mould control or construction drying
  • heating film made in Germany, integrated thermostat
  • Without Frame
  • Colour: black

Technical details

  • base colour: black
  • dimensions: 600 x 600 x 40 mm
  • weight: 9.3 kg
  • voltage: 230 V / 50 HZ
  • protection class: IP20
  • heating performance: 510 W +/-5%
  • radiation distance: < 3.50 m
  • radiation angle: approx. 170°
  • surface temperature: front 30-110°C +/-5%, back 20-25°C +/-5%
  • overheating protection: yes
  • thermostat: yes
  • material: steel sheet
  • the heating foil is made in Germany

Scope of delivery

  • 510 W infrared heater 600 x 600 mm black
  • 1 thermostat
  • includes wall mount!

Notice

What is infrared radiation?

Solar heat travels millions of kilometres through cold space and still warms us excellently. Electromagnetic waves (lat. infra) are the reason for this phenomenon.

These waves release energy through molecular vibrations, which we perceive as heat. Unlike shorter waves such as x-rays, infrared rays have a very positive effect on humans. Infrared provides us with natural warmth.

The subtle difference: In contrast to conventional radiators, infrared heaters (primary radiation) heat up the walls instead of the air in a room. Walls store heat longer than air can and return the heat to the room. (Secondary radiation) The masonry remains dry - moisture and mould do not stand a chance.

Information on the dimensions

For infrared heaters, the room's volume is not relevant, but the actual area of the enclosure. Usually, this includes the four walls, floor and ceiling. To simplify your calculation, we limit the whole thing to the base surface, i.e. the size of the room. To do this, you need the length and width of the room. Suppose the room is 6 metres x 5 metres, that equates a room size of 30 m². These 30 m² of floor space are now multiplied with an *output value of 75 Watt per m² (up to 2.60 m height). Amounts to: 30m² x 75 Watt/m² = 2250 Watt.

Therefore, you need a heating capacity of 2250 Watt. You can now choose these as either 2 x 900 Watt + 1 x 450 Watt = 2250 Watt or as 2 x 1200 Watt = 2400 Watt.

Higher wattage does not mean that more power is consumed. On the contrary, this rather results in faster heating, so that the infrared heater is shut off earlier.

Please note that this output figure of 75 Watt/m² was calculated based on a ceiling height of up to 2.60m. Should the room be higher, add an additional output value of 5 Watt/m² per 5 cm. At a ceiling height of 3 metres, that would equate an additional 40 Watt. The result would be an *output level of 115 Watt/m². Multiplied with the floor area, 30 m² in this example, this amounts to: 30 m² x 115 Watt/m² = 3450 Watt.

Depending on the angles and corners of the room, you can now choose your matching heating panels. Thus a room in an L-shape requires at least 2 panels as a single panel's rays would not reach the entire space. This can be clearly seen by shining a torch from a corner in the room. For not all walls are illuminated. Light is a ray after all and radiation heat works the same way. Using a second torch, you can now light up the entire room.

Please note the impact radius of 3.50 meters. A torch loses its brightness the further away it is from the illuminated object. Infrared rays lose their intensity at a range of around 3-4 meters resulting in long heating periods.

For rooms that are subject to greater humidity, such as bathrooms, for example, simply calculate twice the dimensions. That way, you will experience your baths like a swim in the sea. You won't freeze despite having wet skin. That is the advantage of infrared heating.

Customers also searched for: panel heater, bathroom heater, garage heater, eco heater, workshop heater, wall heater, bathroom wall heater

  • Brand TECTAKE
  • Installation type Wall mounted
  • Heating surface 30 m²
  • ManoMano Reference ME11630838
  • SKU 402044
