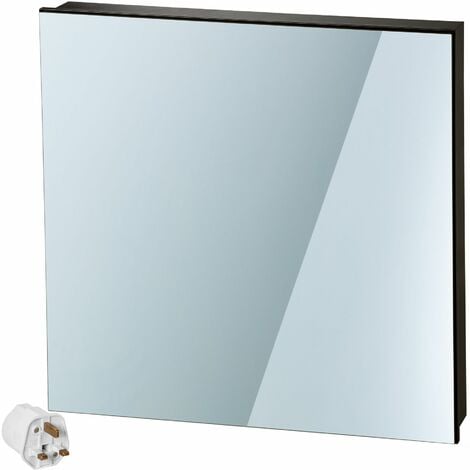

Infrared heater mirror - 450 W

Reference: ME14867727

Out of stock

View full description
£268.99
£268.99 / unit
  • Free delivery (postcode specific)

Sold by: tectake

Infrared heater mirror - 450 W
£268.99

Description

The modern mirror infrared heater is not only an excellent heat supplier, but also a visual highlight. It is used primarily for heating modern living rooms, children's bedrooms and offices. With protection class: IP 20 mains plug / IP 44 fixed connection (splash-proof), the infrared panels can also be used in the bathroom. The infrared panel is flat like modern LCD displays and can be installed quickly in a few simple steps. The front is made of toughened safety glass, the back of galvanized sheet steel. As a heat transfer medium, we use insulated and bundled conductor threads that are woven in heat-resistant and non-combustible fabric.

Highlights

  • Modern mirror surface
  • Natural heat
  • Overheating and overvoltage protection
  • Protection class: IP 20 mains plug / IP 44 fixed connection
  • Single-pane safety glass
  • Also suitable for large rooms with high ceilings
  • GS-tested by TÜV SÜD: Certificate number: Z1A 082338 0009
  • Colour: black

Technical details

  • base colour: black
  • dimensions: 620 x 620 x 40 mm
  • weight: 11.4 kg
  • voltage: 230 V / 50 HZ
  • protection class: IP 20 mains plug / IP 44 fixed connection
  • heating performance: 450 W +/-10%
  • radiation distance: < 3.50 – 4 m
  • radiation angle: approx. 170°
  • surface temperature: front 85 – 95°C
  • Overheating protection: 2 pieces
  • Overvoltage protection: 1 piece
  • Material: steel sheet, mirror surface, plastic

Scope of delivery

  • mirror infrared heater
  • includes wall mount

Notice

Please note that this infrared heating panel cannot be positioned on the ceilings!

What is infrared radiation?

Solar heat travels millions of kilometres through cold space and still warms us excellently. Electromagnetic waves (lat. infra) are the reason for this phenomenon.

These waves release energy through molecular vibrations, which we perceive as heat. Unlike shorter waves such as x-rays, infrared rays have a very positive effect on humans. Infrared provides us with natural warmth.

The subtle difference: In contrast to conventional radiators, infrared heaters (primary radiation) heat up the walls instead of the air in a room. Walls store heat longer than air can and return the heat to the room. (Secondary radiation) The masonry remains dry - moisture and mould do not stand a chance.

Information on the dimensions

For infrared heaters, the room's volume is not relevant, but the actual area of the enclosure. Usually, this includes the four walls, floor and ceiling. To simplify your calculation, we limit the whole thing to the base surface, i.e. the size of the room. To do this, you need the length and width of the room. Suppose the room is 6 metres x 5 metres, that equates a room size of 30 m². These 30 m² of floor space are now multiplied with an *output value of 75 Watt per m² (up to 2.60 m height). Amounts to: 30m² x 75 Watt/m² = 2250 Watt.

Therefore, you need a heating capacity of 2250 Watt. You can now choose these as either 2 x 900 Watt + 1 x 450 Watt = 2250 Watt or as 2 x 1200 Watt = 2400 Watt.

Higher wattage does not mean that more power is consumed. On the contrary, this rather results in faster heating, so that the infrared heater is shut off earlier.

Please note that this output figure of 75 Watt/m² was calculated based on a ceiling height of up to 2.60m. Should the room be higher, add an additional output value of 5 Watt/m² per 5 cm. At a ceiling height of 3 metres, that would equate an additional 40 Watt. The result would be an *output level of 115 Watt/m². Multiplied with the floor area, 30 m² in this example, this amounts to: 30 m² x 115 Watt/m² = 3450 Watt.

Depending on the angles and corners of the room, you can now choose your matching heating panels. Thus a room in an L-shape requires at least 2 panels as a single panel's rays would not reach the entire space. This can be clearly seen by shining a torch from a corner in the room. For not all walls are illuminated. Light is a ray after all and radiation heat works the same way. Using a second torch, you can now light up the entire room.

Please note the impact radius of 3.50 meters. A torch loses its brightness the further away it is from the illuminated object. Infrared rays lose their intensity at a range of around 3-4 meters resulting in long heating periods.

For rooms that are subject to greater humidity, such as bathrooms, for example, simply calculate twice the dimensions. That way, you will experience your baths like a swim in the sea. You won't freeze despite having wet skin. That is the advantage of infrared heating.
