General description

CasaTherm HOTTOP IP55 is an innovative infrared heat panel designed for efficient heating in both indoor and outdoor spaces. With its sleek silver grey anodised aluminium finish, this heat panel combines functionality with modern aesthetics. It utilizes advanced infrared heating technology to provide cozy warmth without the emission of light, making it ideal for various applications such as terraces, conservatories, and spas.

Technical specifications

Voltage: 220 - 240 Volt / 50/60 Hertz

Material: Aluminium

Colour: Silver grey, anodised

Power models available: 1500, 1800, 2400, and 2950 Watt

Warm-up time: Approximately 15 minutes

Maximum surface temperature: 360°C

Protection code: IP55 (protected from splashing water)

Weight: 5.7 kg (1500W), 6.4 kg (1800W), 7.8 kg (2400W), 9.8 kg (2950W)

Dimensions: 1100 mm (1500W), 1250 mm (1800W), 1550 mm (2400W), 1950 mm (2950W)

Current consumption: 6.5 A (1500W), 7.8 A (1800W), 10.4 A (2400W), 13.9 A (2950W)

Radiating surface: 3150 cm² (1500W), 3650 cm² (1800W), 4575 cm² (2400W), 5850 cm² (2950W)

Installation

Wall and ceiling mount included

Minimum distance to ceiling or wall: 7.7 cm (when mounted to non-flammable surfaces)

Temperature-resistant silicone cable (1.8 m) without plug for fixed installation; a type F plug can be added if necessary

A residual-current device (RCD) with 30mA tripping current must be connected upstream of the device

Usage

This heat panel is ideal for heating outdoor areas that are shielded from wind, such as terraces and sitting areas, as well as indoor spaces like conservatories and spas. It operates without dehumidifying the ambient air or raising dust, ensuring a comfortable environment.

Other information

Infrarotheizstrahler Dunkelstrahler CasaTherm Heatpanel HOTTOP IP55 mattschwarz

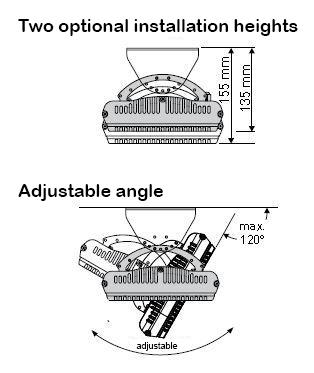

CasaTherm Heatpanel HOTTOP installation specifications

Features

Brand
CASAFAN
Colour
Grey
Power
1500 W
Material
Aluminium
IP rating
IP55
Width
9.5 cm
Heating element
Aluminium
Weight
5.7 kg
Radiator type
Infrared
Installation type
Wall mounted
ManoMano Reference
ME5177215
MMID
480828792096
Product code
981519
EAN
4024397367979
