Product information

Description

General description

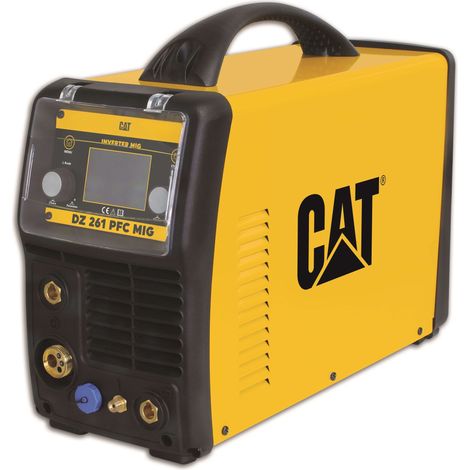

The INVERTER WELDING MACHINE 200A MIG TIG MMA CATERPILLAR DZ261PFCMIG is a versatile welding machine that utilizes PFC technology, ensuring a power factor of more than 0.99. It offers multiple advantages, including energy savings and compatibility with both 110V and 230V input voltages. The machine features a multilanguage instruction manual, VRD technology, and a synergic function for enhanced usability. It is equipped with advanced protections, including temperature, voltage, and current sensors, ensuring high safety standards during operation.

Technical specifications

Main Voltage: 110V - 230V

Welding current: 10 ÷ 200A

Duty Cycle 40°: 200A - 40%

No load Voltage: 85.5V

Absorbed Power: TIG 5.1 kW / MMA 7.3 kW / MIG 6.1 kW

Min-Max Electrode Wire Diameter: 0.6 ÷ 5 mm

Fe: 0.6/0.9/1.0 mm

Ss: 0.8/0.9/1.0 mm

Flux-Cored: 0.6/0.8/0.9/1.0 mm

Dimensions: 410 x 220 x 525 mm

Weight: 17.8 kg

Other information

LCD Display: 260,000 true colors

Spool capacity: up to 5 kg

Arc Stability: waveform control for added stability of the arc, even at low currents

Features

Brand
CAT
Amperage
200 A
Origin
Made in Italy
Height
41 cm
Width
22 cm
Material
Metal
Weight
17.8 kg
Welding process
MIG / MMA
Welding machine technology
Inverter
Voltage
230 V
ManoMano Reference
ME56683066
MMID
690067019746
Product code
127.DZ261PFCMIG
EAN
8054608790063
