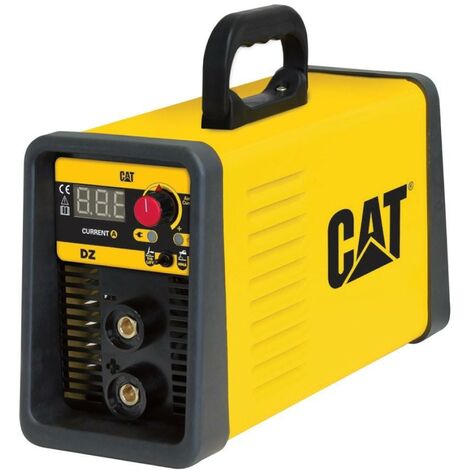

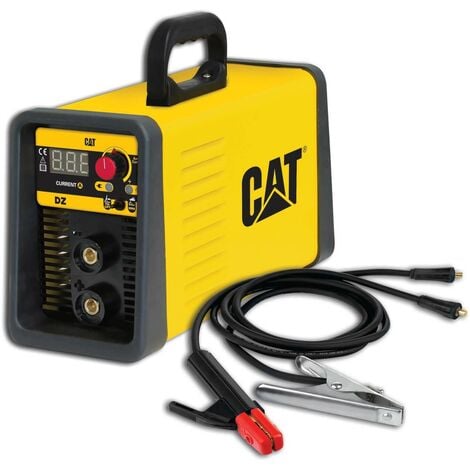

INVERTER WELDING MACHINE 200A MMA TIG CATERPILLAR DZ201

Name: INVERTER WELDING MACHINE 200A MMA TIG CATERPILLAR DZ201
Brand: CATERPILLAR
SKU: 7228
Price: 272.91 GBP
Availability: InStock

~~£382.08~~

Sold by GLS72

Product information

Description

General description

The INVERTER WELDING MACHINE 200A MMA TIG CATERPILLAR DZ201 is a versatile welding machine designed for both MMA and TIG welding. It features a lightweight design, making it easy to transport and use in various settings.

Technical specifications

Main Voltage: 230V

Welding current: 15 – 200A

Duty Cycle 40°: 200A - 20%

No load Voltage: MMA 70V - TIG 14V

Absorbed Power: TIG 4.7 / MMA 6.3 kW

Electrodes Type: 6013/308/7018/A5.15

Min-Max Electrode: 1.6 – 5 mm

Dimensions: 195 x 135 x 365 mm

Weight: 5.2 kg

Compatibility and accessories

Compatible with electrodes types: 6013, 308, 7018, A5.15

Installation

Designed to work with diesel generators

Usage

Capable of welding with Tig Lift Mode

Features Hot Start, Anti-Sticking, and Arc Force functions

Digital display for variable amperage control and simultaneous welding current display

Features

Brand
CATERPILLAR
Amperage
200 A
Origin
Made in Italy
Electrode compatibility
Rutile
Height
36.5 cm
Width
13.5 cm
Electric cable length
2000 mm
Material
Plastic
Number of phase(s)
Two-phase
Weight
5.2 kg
Welding process
MMA
Adjustable power settings
Electronic
Welding machine technology
Inverter
Voltage
230 V
ManoMano Reference
ME55272063
MMID
116782212204
Product code
7228
EAN
8054608790193
