Product information

Description

General description

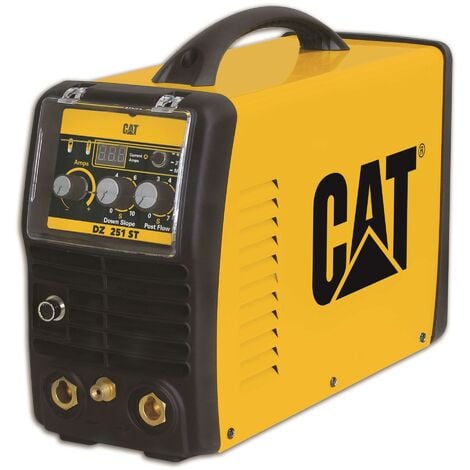

Multipurpose inverter welding machine suitable for MMA and TIG welding. It features a high-frequency TIG mode and selectable post flow time for enhanced control. The machine is designed to work efficiently with diesel generators, minimizing the risk of failures due to voltage spikes.

Technical specifications

Main Voltage: 230V

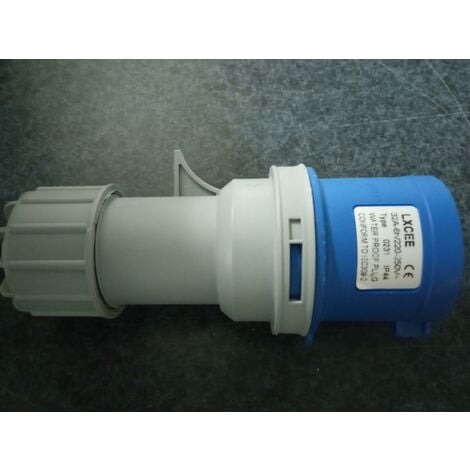

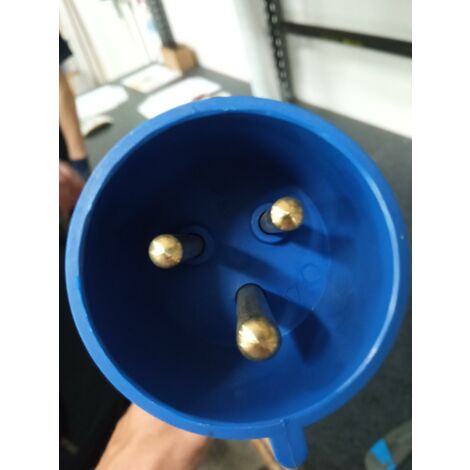

Power cable: 2m - 2.5mm² section - 2P + T 32A industrial plug

Welding current: 10 ÷ 200A

Duty Cycle at 40°: 200A - 35%

No load Voltage: 85V

Absorbed Power: TIG 4.5 kW / MMA 7 kW

Electrode Types: 6013/7018

Min-Max Electrode: 1.6 ÷ 5 mm

Dimensions: 280 x 150 x 320 mm

Weight: 6.9 kg

Other information

Equipped with temperature, voltage, and current sensors for high protection.

Programs provided for optimum selection of Up/Down Slopes by torch trigger (2T/4T).

Extremely low weight and versatility for easy handling.

Features

Brand
CAT
Amperage
200 A
Height
32 cm
Width
28 cm
Suitable for
Plastic

Welding Machine Buying Guide

Whether you want to weld iron, stainless steel, or aluminum, a welding machine is required. Arc welding, semi-automatic welding, TIG, MIG, MIG-MAG, Inverter welding machine. From the professional to the amateur, every welder has a right to a wand. Lower your hoods and electrodes and flash on the welding!

INVERTER WELDING MACHINE 200A TIG DC HF MMA CATERPILLAR DZ251ST
