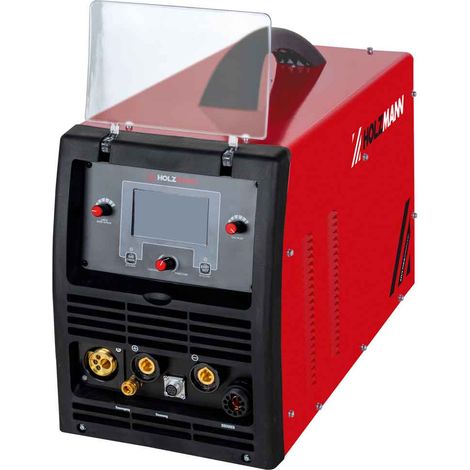

Inverter welding machine Holzmann multisa200acdc

Sold by GLS72

Product information

Description

General description

The HOLZMANN MultiSA200ACDC welding system is a versatile machine that allows you to perform plasma cutting, MMA (electrode) welding, MIG (shielding gas), and TIG welding. It comes as a complete, high-quality package featuring a carrying handle, an LCD display, and the necessary torches and electrode holder.

Technical specifications

Gas pre-flow time: 0-10 s

Gas post-flow time: 0-10 s

Spot welding frequency: 0.5-15 s

Spot welding time: 0-15 s

MMA welding current range: 10-160 A

Hot start time: 0-2 s

MIG welding current range: 30-200 A

Welding wire gauge: 0.6 | 0.8 | 0.9 | 1.1 mm

Wire feed speed: 1.5 - 15 m/min

Current slope time: 0 - 1 s

TIG welding current range: 10 - 200 A DC

TIG welding current range: 20 - 200 A AC

AC DC pulse frequency: 0.5 - 150 Hz

AC pulse frequency square wave, hard: 0.5 - 150 Hz

AC pulse frequency square wave, soft: 0.5 - 10 Hz

AC pulse frequency triangle: 0.5 - 10 Hz

AC pulse frequency sine: 0.5 - 10 Hz

Basic pulse ratio: 5-95%

Current basic polarity: 3 - 95%

TIG arc ignition: HF/Lift

TIG PULSE welding (hard): AC peak current: 20 - 125 A

Plasma cutting current range: 20 A - 40 A

Max. cutting thickness: 12 mm

Operating air pressure: 2.5 - 5 bar (0.25 - 0.5 MPa)

Air flow rate: 60 - 100 l/min

Input voltage: 230 V / 50-60 Hz

Power consumption: 7.4 kVA

Installation dimensions: 600 x 290 x 480 mm

Net weight: 30 kg

Gross weight: 35 kg

Packaging dimensions: 350 mm (width) x 790 mm (length) x 630 mm (height)

Compatibility and accessories

Cutting torch

TIG welding torch

MIG welding torch

Electrode holder

Torch cap (short/long)

Spacer

Gas nozzles

Housing and clamping sleeves

Gas hose

Earth cable

Pressure reducer

Features

Brand
HOLZMANN MASCHINEN
Pcs per pack
1
Height
48 cm
Width
60 cm
Suitable for
Metal
Material
Metal
Number of phase(s)
Single-phase
Weight
30 kg
Welding process
MMA
Welding machine technology
Inverter
Voltage
230 V
ManoMano Reference
ME94099824
MMID
645361061855
Product code
886.MULTISA200ACDC
EAN
9120132140441
