Product information

Description

General description

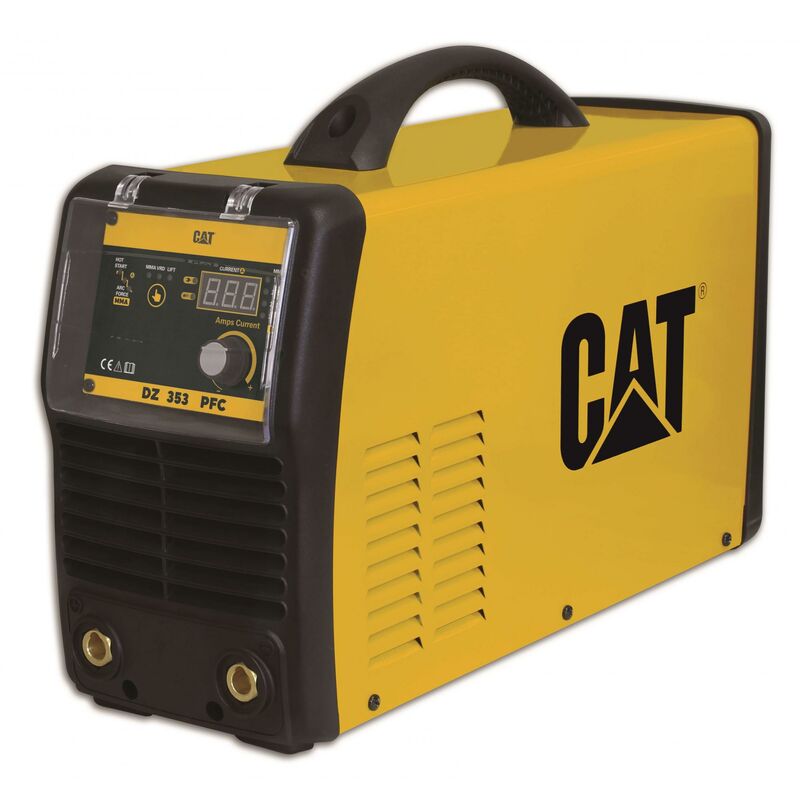

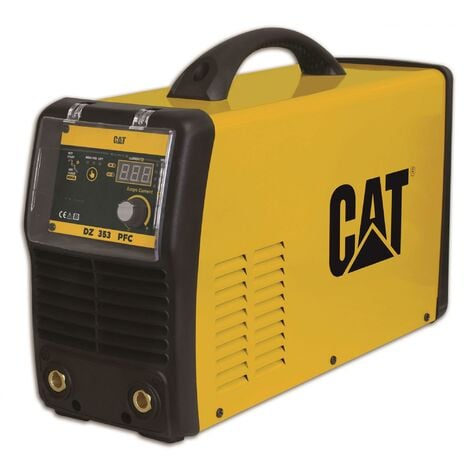

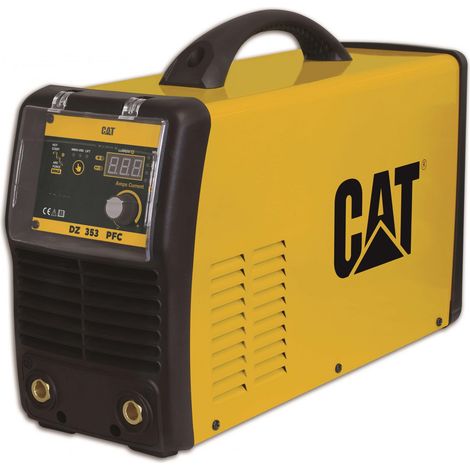

The INVERTER WELDING MACHINE MMA TIG PFC 250A CATERPILLAR DZ353 PFC is a versatile welding machine designed for both MMA and TIG welding. It features a lightweight design, making it easy to transport and use in various settings. The machine is generator-friendly, ensuring reliable performance even with voltage spikes.

Technical specifications

Main Voltage: 230V - 400V

Welding current: 10 ÷ 250A / 10 ÷ 315A

Duty Cycle 40°: 230V: MMA 200A - 45% / TIG 250A - 40%; 400V: MMA 315A - 40% / TIG 315A - 40%

Absorbed Power: 230V: MMA 6.8 kW - TIG 6.4 kW; 400V: MMA 12.7 kW - TIG 9.1 kW

No load Voltage: 65V

Min-Max Electrode: 1.6 ÷ 5 mm

Dimensions: 350 x 139 x 492 mm

Weight: 15.7 kg

Other information

Features: Tig Mode capable of welding with Tig Lift Mode

Extra functions: “Hot Start”, “Anti-Sticking” and “Arc Force”

Protections: Equipped with temperature, voltage, and current sensors for high protection

Digital Display: Variable amperage control with digital meter for simultaneous welding current display

Features

Brand
CAT
Width
13.9 cm
Height
49.2 cm
Weight
15.7 kg
Voltage
230 V
