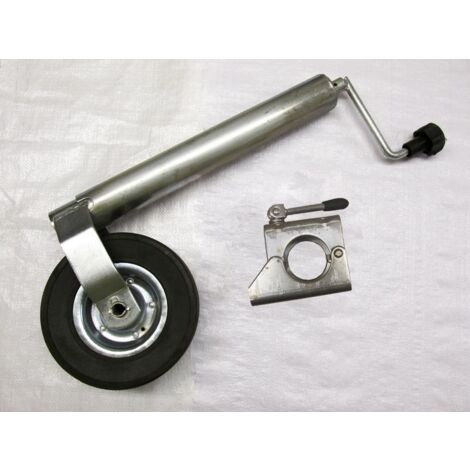

Jockey Wheel with Clamp 60MM (Metal Rim Guide Trailer Caravan Heavy Duty Rubber)

Name: Jockey Wheel with Clamp 60MM (Metal Rim Guide Trailer Caravan Heavy Duty Rubber)
Brand: SECUREFIX DIRECT
SKU: SFJOCKG/SFJOCKG1
Price: 43.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Jockey wheels are essential for making the movement and adjustment of trailers easier. This 60MM Caravan Jockey Wheel with Clamp features a heavy-duty rubber tire and a metal rim, designed for durability and efficiency.

Technical specifications

Max Load Capacity: 180KGS

Tube Diameter: 60MM

Tyre Width x Diameter: 60MM x 215MM

Overall Height Min To Max: 655MM To 900MM

Bore Length: 50MM

Finish: Bright Zinc Plated

Clamp Dimensions: A (131MM), B (100MM), C (46MM), D (105MM), E (70MM), F (20MM)

Compatibility and accessories

Designed for holding jockey wheels and prop stands on the side of trailers.

Installation

Simply screw the clamp clockwise or anti-clockwise to open or close for easy installation.

Usage

Facilitates the movement and adjustment of trailers.

Other information

Note: Due to the zinc plating process, the finish may have blemishes.

Features

Brand
SECUREFIX DIRECT
Material
Two-material
Pcs per pack
1
Weight
100 g
ManoMano Reference
ME27139515
MMID
421129953188
Product code
SFJOCKG/SFJOCKG1
EAN
707152588065

Advice from

Jockey wheel buying guide

Jockey wheels are used as props to couple and steer trailers with ease, and are generally welded or bolted directly onto the A frame. Choose between puncture-proof, pneumatic or motorised jockey wheels but be sure to pay attention to the load capacity and clamp size. Read on to find the right jockey wheel.
