Joystick switch, ideal gift, carefully crafted, complete parts, optimal operation for all your activities.
Of which environmental contribution £0.10 including VAT.
Sold by Cuizi
You may also like
Compare with similar items
Product information
Description
Features:

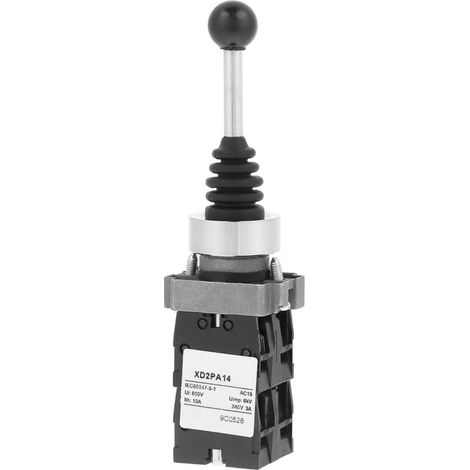

1. The joystick switch is a latching switch with 4 normally open contacts.2. Made of premium material, this switch is durable and has good performance.
3. The rubber sleeve cover on the stick is water, oil, and dust resistant.
4. Widely used for industrial control of AC 50Hz and DC circuits.
5. It can control magnetic starters, contactors, relays, and other electrical circuits.
Specifications:
Features:The joystick switch is a latching switch with 4 normally open contacts.
Made of premium materials, this switch is durable and has good performance.
The rubber sleeve cover on the stick is water, oil, and dust resistant. Widely used for industrial AC 50Hz control and other electrical circuits. Model: xd2pa14 Type: 4-position latch Contact: 4NO Rated Voltage: 0~380V AC (50Hz) 0 ~ 220V DC
Mounting hole diameter: 22 mm
Rated insulation voltage (UI): 660V
Thermal rating (Ith): 10a
Operating temperature: -25 ~ +55 ℃ (no ice)
Contact resistance: ≤50mΩ
Insulation resistance: ≥ 100Ω
Maximum processing voltage: 3000v, AC 50Hz
Vibration: 50Hz, Amplitude is a resistance to a damper of approximately 1 mm:> 10m/s² (approximately 10g)
Electrical life:> 3,000,000 cycles
Mechanical life: 1,000,000 cycles
Dimensions: 14.5 * 4cm / 5.7 * 1.6 inches
IP Rating: IP40
Weight: 151g (approx.)
Package includes:
1 x switch
Features
- BrandOTHERS
- ColourWhite
- Amperage10 A
- Width15 cm
- With indicator lightYes
- Complete / ComposableSwitch parts
- SmartYes
- Availability of spare parts0.000912 year(s)
- WaterproofYes
- Height35 cm
- IP ratingIP40
- MaterialPlaster
- Switch mechanismSwitch
- Type of electrical installationSurface mounted
- PackYes
- Power25 W
- Voltage10 V
- ManoMano ReferenceME220684649
- MMID513086620307
- Product codeBT-UK2025YS-52238
- EAN9140747136387
