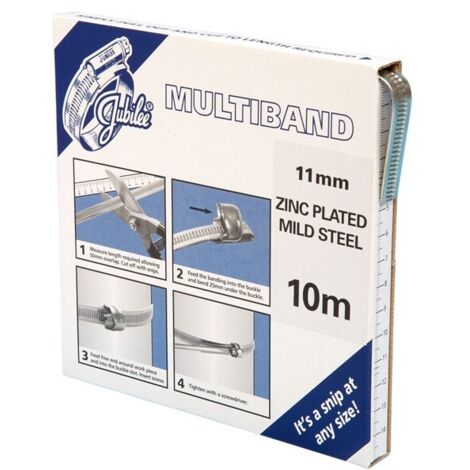

Jubilee: MB1701 Zinc Plate Banding in Dispenser 11MMX10M

The Jubilee Multiband system comprises a worm drive steel strip that is cut to the length required, and screw housings (sold separately) which slide onto the band. The band can then be tightened onto pipes or ducts of almost any diameter. A number of screw and housing designs and two band widths are available to suit any application. It's a self assembly, endless banding or screw band system that allows the user to have full control over the length of their banding. Available in 10 or 30 metre lengths. Requires 11mm width housings & Screws (MB1704), Allen screws (MB1705) or Captive Screws (MB1706), supplied separately.

Features and Benefits
Contains 10 or 30 metres of banding that can be cut to length to suit your own requirements
Can be used as an endless banding system or a screw band system depending on your options
Easy to use and versatile to suit your needs
Available in zinc plated mild or stainless steel to suit personal preferences

Typical Applications
Used in areas such as heating, ventilation, HVAC, sign fixing, cable retention and many more
MPN: MB1701
EAN: 5016598273004

MB1701 Zinc Plate Banding in Dispenser 11MMX10M Attributes:

Band Thickness:	0.82mm
Band Width:	11mm
Fastening Method:	Captive Housing & 7mm AF Hex Screw Solid Housing & 5/16 Allen Screws Solid Housing & 7mm AF Hex Screw
Industry Recommendation:	Electrical Hardware / DIY Industrial Ventilation Agricutral / Farming
Length:	10m
MFR Part No.:	MB1701
Material:	Mild Steel
Pack Quantity:	1
Quality Assurance:	BS5315-1991 DIN3017 EMS 622250 FM00547 Kitemarked KM6246
Surface Treatment:	Zinc Plated
Torque Range:	3.4 - 4.5mm
Type of Hose Clip:	Multiband (Self Assembly Clips)
