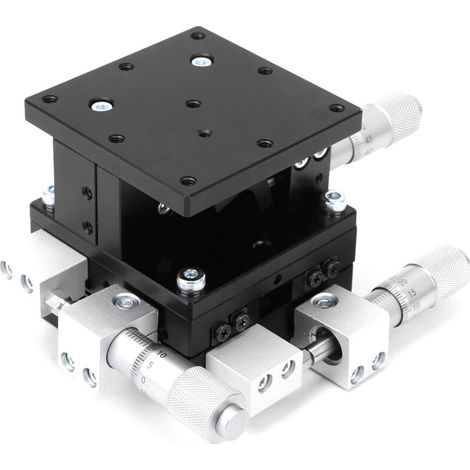

LD60-LM

Features:

1. Widely used in production machinery, testing equipment, optical experimental measurements, fine adjustment of displacement, precision positioning, quantitative motion, etc.
2. XYZ 3-axis DOF ​​can be adjusted, internal cross rail, high precision, strong load capacity.
3. Nickel-plated locking screw, nickel-plated fine adjustment knob.
4. Carbide side head, tighter locking, no rust in complex environments, more durable, corrosion-resistant.
5. It adopts a high-strength steel cross guide rail, which has high load-bearing capacity, stable operation, and better wear resistance.
6. The guide rail surface is galvanized and can be used in complex environments, corrosion- and rust-resistant.
7. Micrometer training method with an accuracy of 0.03 mm.

Specifications:

Item Type: Linear Step Cutting Platform
Model: LD60-LM
Material: Aluminum Alloy (Black Anodized Surface)
Table Size: Approx. 60 x 60 mm / 2.4 x 2.4 inches
Total Height: Approx. 65 mm / 2.6 inches
Moving rail: Cross rail
Drive mode: Micrometer
Direction of movement: XYZ 3-axis DOF
XY axis travel: ± 6.5 mm
Z axis travel: 10 mm Load: 24.5 N (3 kgf)
Minimum Scale: 0.01 mm
Accuracy: 0.03 mm
Parallelism: 0.03 mm
Application: Production machinery, testing equipment, optical experimental measurement, adjustment movement, precision positioning, quantitative movement, and so on.

Package List:

1 x Linear Cutting Platform
