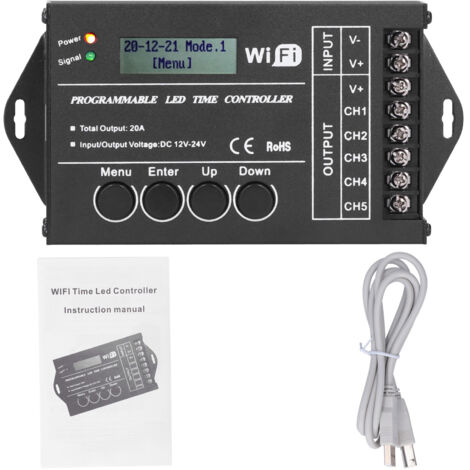

LED Light Controller Multifunctional WiFi Programmable Lamp Timing Switch Controller

1、Programmable time controller, can be controlled by telephone, with wifi wireless function.

2、Multiple compatibility, support 1‑5 channel output, support RGBW/RGB/dual‑color/single color and LED strip lighting.

3、Multifunctional, can adjust the light color, brightness and color change speed of lighting products.

4、Easy to use, setting mode can be downloaded from the computer to this time controller.

5、It has a wide range of uses, and can be used in living room, decorative lighting, parties, permanent lights, etc.

Item Type: Time Controller

Material: Aluminum

Weight: Approx. 367g/12.9oz

Product Size: Approx. 12.2 x 2.6 x 7.7cm/4.8 x 1 x 3in

Cable Length: Approx. 1.2m/3.9ft

Purpose: Lamp Switch Controller

Working Temperature: -20-60℃

Power Supply Voltage: DC12-24V

Static Power Consumption: 0.5W

Output: 5 Circuits

Maximum Output Current: 20A

Instructions for Use:

The programmable time controller with the host computer can make the load output change with time. Customers can customize the schedule mode they want through the host computer. Then download the required schedule to the controller through the USB port. In addition to the function of editing the schedule, the upper computer can also set the time for the controller, that is, the synchronization clock function of the upper computer. If the user wants to see the effect of the edited timetable, he can use the fast broadcast function of the host computer. The upper computer is also equipped with a delete function. Once the delete function is executed, the mode name display area becomes blank. The programmable time controller with the host computer can control the changes of five-channel load LED at most. The adjustment of the lighting effect can be applied to plant lights, light box advertisements, stage scenery, home decoration, etc.

1 x Controller

1 x Instruction

1 x Disc

1 x USB Cable
