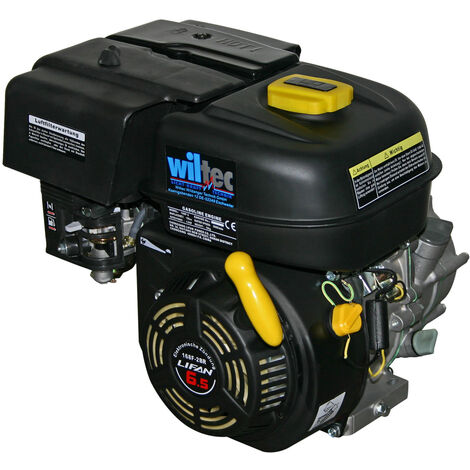

LIFAN 168 Petrol Gasoline Engine 4.5kW (6.5Hp) 196ccm with wet clutch reduction gearbox 2:1

Reference: ME806812

In stock

View full description
£136.68

Delivery from £12.49

£136.68

Delivery from £12.49

Orders over £0.00 with this seller qualify for free delivery


Quantity:
- +

Uh oh…it's not possible to order less than 1 unit of this product.

Sorry, you can only order up to 55 units of this product!

Secure payment by debit or credit card

Available delivery options:
  • Standard delivery in 7 to 8 working days (P&P starting at £12.49)

Delivery to the British Isles only (UK, Jersey and Guernsey)

Sold by: WilTec

LIFAN 168 Petrol Gasoline Engine 4.5kW (6.5Hp) 196ccm with wet clutch reduction gearbox 2:1
£136.68

Description

See the buying guide
OHV 4-stroke single cylinder from Wiltec suitable for karting and for almost any small gasoline machine such as pumps, lawn mowers and cutter bars as well as generators (power producers). Please note the technical drawings; if the old engine has the same crankshaft dimensions, it can be exchanged easily. The engine is equipped with an oil bath clutch as well as a recoil / pull start. Carburetor, exhaust pipe, tank, and air filter are further included in the scope of delivery.

ABOUT LIFAN
The Chonqing Lifan Industry (Group) Co. Ltd. was founded in 1992. it is one of the largest private companies in China. The Lifan Group has grown rapidly and has developed into a diversified corporation with particular focus on modern technology with production and distribution of passenger cars, buses and trucks, motorcycles and engines.

Lifan Motorcycle was awarded the title "Chinese Top Trademark" by the Promotion Committee from the National Office for Quality and Technical Supervision. In January 2006 Lifan was ranked 78 from 100 economically most powerful companies in China and occupied the 6th place in the vehicle sector. Lifan's Technology Center was ranked seven. Lifan employs more than 13.000 people in Chongqing, a region with 35.000.000 inhabitants, situated in the centre of China and has over 4500 patents. Chongqing is considered to be the center of the technical improvements to engines.

In 2002 the passenger car Lifan 520 was launched on the market and in 2003 the first trucks have rolled off the production lines. With their own production lines: cutting, welding, painting and assembly a number of 150.000 units per year was achieved, and a Vehicle Academy was set up.

Since 2011 WilTec Wildanger Technik GmbH has been the sole distributor for Lifan industry engines in Germany and Europe.

SUPPLIERS DECLARATION for engine components as per the Machinery Directive:
This engine is slated for being installed in a machine.The machine in which the engine is to be mounted, cannot be started till it has been established, that this machine complies with the terms of the Machine Directive.
In case of disregard of this reference WilTec Wildanger Technik GmbH cannot be held responsible for any damages or defects. WilTec Wildanger Technik GmbH diclaims any liability for possible damages, since we have no influence on the installing, using and safety of the machine.

Beware!

The article is delivered WITHOUT fuel (without oil or petrol!)
Before starting the engine for the first time fill in oil/petrol!

Maximum engine power:
In accordance with international testing standards the engine data was collected without exhaust pipe and air filter.

Rated power:
Achievable engine data resulting from:
Piston side x medium piston pressure x piston stroke x rotational speed x cylinder / 12500
LIFAN 168 Petrol Engine 4.8kW (6.5Hp) wet clutch reduction gearbox 2:1

SKU92441
Anzahl Packstücke1
DimensionsBase plate to output shaft (centre of hole): 90 mm
Weight in kg23
Colourblack
ShaftOil bath clutch 22mm
Engine model168F-2BR
Engine type4-stroke, 1 cylinder, air-cooled, OHV, 25° inclination, petrol engine
max. Motor power6,5 HP / 4,8 kW at 3600 rpm, 11 Nm at 2500 rpm, 196 ccm, 395 (g / kw / h) Fuel consumption
Starting devicerecoil /pull starter
Fuel typesuper-unleaded petrol
Tank capacity (in l)3,60
Oil fillings (in l)1,10
Oil-TypeSAE 15W40 winter / summer
Bore x stroke (in mm)68 x 54
Ignition system Transistored / magneto ignition
Engine-Stop-Systemvs ground
Air-Filtration SystemDual Silent (Semi-dry)
SparkF6TC
Compression8.5 : 1
Volume 7m in distance (dBA)78
Direction of rotationanticlockwise
crankshaft Ø (in mm)20 metric
PTO shaft Ø (in mm)22 metric
Clutch transmission ratio2 : 1
Rated power3.8/3600 rpm
net Weight [kg]21.0000
Package: Height in mm440
Package: Length in mm425
Package: Width in mm450
Availability Immediate dispatch,
available within 3-5 business days*
ShippingPaket
  • Brand LIFAN
  • Start up Manual
  • Type of motor 4-stroke engine
  • Power 6.5 HP
  • Cylinders 196 cm³
  • ManoMano Reference ME806812
  • SKU 92441
