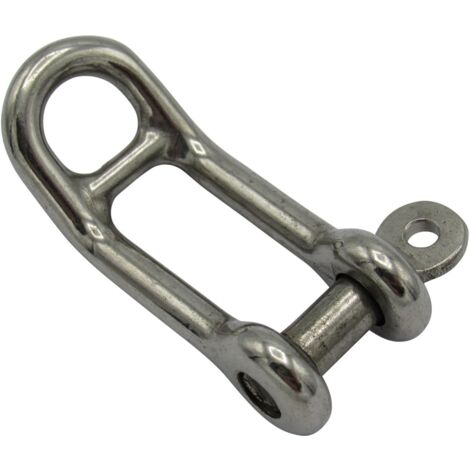

Long Double Bar D Shackle with Captive Pin Stainless Steel 8MM (Rigging Dee)

Name: Long Double Bar D Shackle with Captive Pin Stainless Steel 8MM (Rigging Dee)
Brand: SECUREFIX DIRECT
SKU: SFSSDB08
Price: 8 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Long Double Bar D Shackle with Captive Pin is designed for secure attachment to ropes and chains. Made from 316 Grade Stainless Steel, these shackles offer excellent rust protection, making them ideal for marine applications. The captive pin design minimizes the risk of losing the pin, as it requires unscrewing twice before detachment.

Technical specifications

Size: 8MM

Metal: 316 Grade Stainless Steel

Product Code: SFSSDB08

Dimensions:

A (MM): 34

B (MM): 18

C (MM): 19

D (MM): 15

E (MM): 6

F (MM): 9

Breaking Load (KG): 3700

Usage

These Dee Shackles are widely used for various applications, primarily for attaching to ropes and chains in marine and other environments.

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Weight
100 g
Maximum load
3700 kg
Material
Stainless steel
ManoMano Reference
ME27129293
MMID
151774217041
Product code
SFSSDB08
EAN
707152586849
