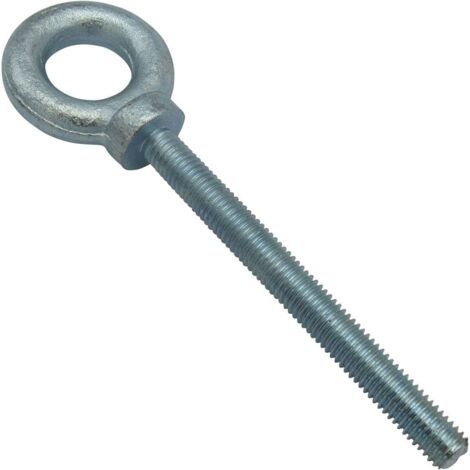

M10 Lifting Eye Bolt - Long Shank Dynamo Zinc Plated Threaded Eyebolt BS4278 0.25 Ton 10MM

Name: M10 Lifting Eye Bolt - Long Shank Dynamo Zinc Plated Threaded Eyebolt BS4278 0.25 Ton 10MM
Brand: SECUREFIX DIRECT
SKU: SFMDEL10ZP
Price: 7 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These M10 Lifting Eye Bolts are designed for various lifting applications, featuring a long shank that provides additional thread length for secure fastening. They are zinc plated for enhanced durability and corrosion resistance. These eyebolts are widely used in the lifting industry and are tested and certified for lifting purposes.

Technical specifications

Product Code: SFMDEL10ZP

Product Weight: 0.1 kg

Thread Diameter: 10 mm

Safe Working Load (SWL): 0.25 ton

Dimensions:

A: 19.5 mm

B: 42 mm

C: 21 mm

D: 10 mm

E: 8 mm

F: 27 mm

G: 10 mm

H: 99 mm

Pitch: 1.50

Usage

These eyebolts are intended for straight lifting applications only and should be used by a competent person to ensure safety and effectiveness. Always verify the load capacity before use.

Other information

Test Certificate Included (Sent via eMail).

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Material
Zinc
