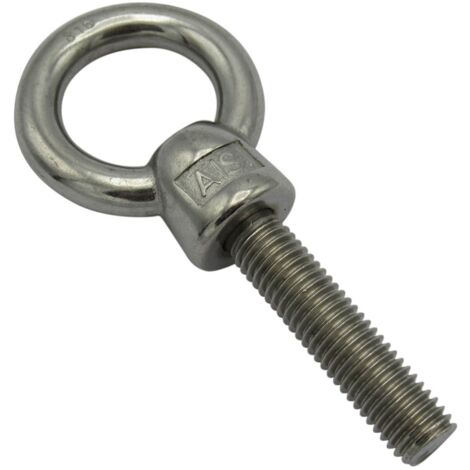

M20 Long Shank Eye Bolt Stainless Steel (150MM Metric Thread Rope Cable Marine Grade)

Stainless Steel Long Shank Eyebolts Size - 20MM x 150MM Product Code Breaking Load (KG) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) SFSSEBL05 X 54 12 5 5 3 5.4 35 X SFSSEBL06 830 12 25 13 6 11 16 5 80 SFSSEBL0650 830 12 26 16 6 13 19 5 50 SFSSEBL08 1480 14 29 18 8 13 21 6 100 SFSSEBL0850 1480 15 31 20 8 13.5 23 5 52 SFSSEBL10 2300 17.5 38 23.5 10 16 28 8 100 SFSSEBL1050 2300 18 40 25 10 17 29 7 51 SFSSEBL10A 2300 17.5 38.5 23.5 10 14 26 8 200 SFSSEBL12 3320 21 47 28.5 12 20.5 31.2 9.5 123 SFSSEBL1250 3320 24 49 28 12 24 35 10 51 SFSSEBL12A 3320 21.5 47.5 28.5 12 18.5 32 9.5 200 SFSSEBL16 5900 28 57 34 16 27 41 12 149 SFSSEBL1650 5900 29 59 32 16 26 41 12 50 SFSSEBL20 9180 34.5 71 40 20 27 50 15 152 Our Long Shank Eyebolts Have Uses That Vary From Marine Use To Home And Garden Use These Are Hugely Popular Within The Marine Industry As They Are Manufactured From 316 Grade Stainless Steel Giving Them The Best Rust Protection. Please Note We Supply A Huge Variety Of Stainless Steel Parts.
