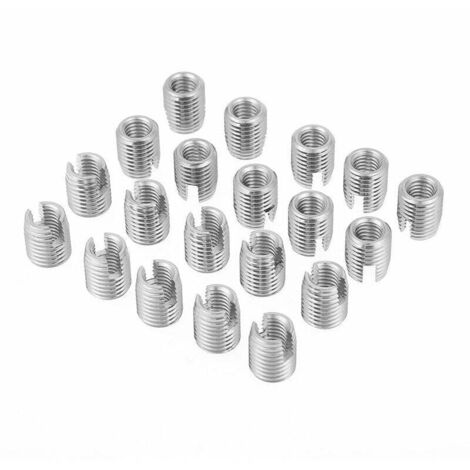

M8x15mm Self-Tapping Threaded Inserts, SUS303 Stainless Steel Helical Inserts (20pcs)

EASY TO INSTALL: These self-tapping threaded inserts are self-tapping; no pre-tapping is required, and they can be used directly with installation tools to screw into specific holes.

SAFETY: They have strong anti-vibration capabilities and can prevent loosening. They can be used in many different locations.

Repair Aid: Damaged screw holes can be used normally after installing the threaded inserts.

Large Contact Area: A length of 10mm makes the contact area larger, and the tensile force is strong.

Wide Range of Applications: Widely used in many fields such as the automotive industry, the railway industry, shipbuilding, and household appliances.

Manufacturer discontinued: No

Describe:

These thread inserts can effectively

Improved threaded connections significantly increase reliability. For

Various low-strength materials, thread inserts can greatly improve

The wear resistance of threaded connections prevents thread

shame.

Feature:

These self-tapping thread inserts can be installed directly without first touching the threads.

They are used in low-strength materials such as aluminum,

Magnesium, to avoid damaging the threads and obtain a good connection.

Properties to increase joint strength and improve the connection.

Healthy condition. Used for parts that need to be frequently disassembled, it can greatly improve the lifespan and wear resistance of the threads. It can prevent screws from loosening and is particularly suitable for products subject to high insurance factor requirements. Simple: During repair, install the threaded insert into the damaged screw hole, then the screw holes can be used normally to avoid losing the part.

Specification:

Material: SUS303 Stainless Steel

Internal Thread: M8 (diameter) × 1.25 (pitch)

Length: 15mm

External Thread Size: M12 (diameter) × 1.5 (pitch)

Drilling Diameter: 10.6~10.8mm (plastic); 11~11.2mm (aluminum alloy); 11.2~11.4mm (cast iron)

Minimum Drilling Depth: 18mm

Quantity: 20

Weight: 104g (approx.)

Package Included:

20 Threaded Inserts
