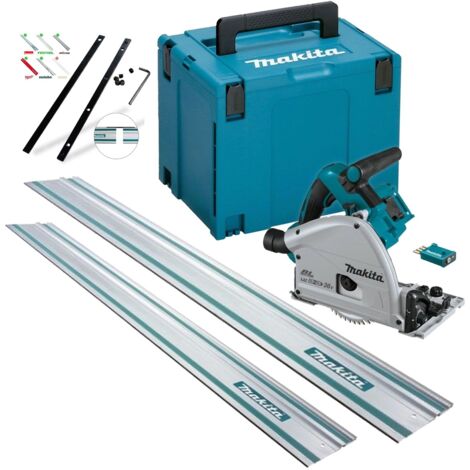

The Makita DSP600/1 Brushless LXT Plunge Saw is powered by 2 x 18V Li-ion batteries in series (not supplied), to supply energy to the powerful 36V DC motor drive system. It has an efficient brushless motor with a soft start feature and an electronic brake for added user safety.
Automatic Torque Drive Technology automatically changes the cutting speed according to load condition for optimum operation. Other features include a variable speed control dial, depth stopper for splinter free cutting and positive stop for bevel adjustment.
Comes with the Auto-Start Wireless Unit.
The wireless unit connects to compatible dust extractors via Bluetooth®. The dust extractor then automatically runs while the switch is on and off when the machine is switched off.The Makita DSP601 Twin 18v (36v) LXT Brushless 165mm (6-1/2”) Plunge Circular Saw delivers precise and more accurate cutting when combined with the Makita guide rail system (sold separately). The saw and rail system work together to produce accurate cuts with minimal tear-out. The saw combines a powerful Makita-built brushless motor powered by two 18 V LXT batteries with Automatic Torque Drive Technology (ADT) Technology, which adjusts cutting speed and torque during the cut for optimum performance.
The added feature from the DSP600 is that this DSP601 has Auto-Start Wireless System (AWS) - which connects to the compatible DVC864LZ Dust Extractor with Bluetooth. The dust extractor automatically runs while the switch is on.
The Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 56mm cutting capacity at 0°, with a bevel capability of -1° to 48° and positive stops at 22.5° and 45°. When used with a rail system (sold separately) this Plunge Circular Saw is a more portable option to a table saw for select applications, and is ideal for use on the job site or in a workshop.
Features
2x 18 volt LXT batteries - More power, speed and run time without the hassles of a cord (sold separate)
AWS - Auto-Start Wireless System
connects to compatible dust extractors with Bluetooth. The dust extractor automatically runs while the switch is on
ADT - Automatic Torque Drive Technology automatically changes the cutting speed according to load conditions for optimum operation
Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge
Variable speed control dial - 2,500 - 6,300 RPM for optimum performance in a variety of materials
Close to the wall cutting for expanded cutting applications
Ideal for cutting large wood panels - other wood materials including melamine and MDF, aluminium, and Corian® with optional, material specific blades
Large cutting capacity - 56mm at 0º; and 40mm at 45º
Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º
Electronic speed control maintains constant speed under load for smooth cutting
Soft start feature for smooth start-ups
Easy-to-set depth adjustment with large scale
Smooth and convenient plunge release lever for operator comfort
Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
On-board hex wrench for fast and easy blade changes
Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
Built-in depth stop allows a preliminary first cut of 2 to 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting
Rubberised soft grip handle provides increased comfort on the job
Large rear dust port directs material away from the operator and easily connects to a vacuum system
Slide lever on saw base designed to engage the optional guide rail (sold separately) when bevel cutting for stability
Electric brake for maximum productivity
Compact and ergonomic design and lightweight for reduced operator fatigue
Precise straight and 45º bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail (sold separately)
3-stage L.E.D. gauges indicate battery charge levels
Features of the 194368-5 Guide Rail:
1500mm
Extruded Aluminum Construction.
Ideal for use with sheet materials, including plywood, panelling, etc.
Vinyl Seat on top side enables SP6000 to slide smoothly and freely.
Rubber Seats on underside grip most materials to secure rail when cutting.
Rubber Splinter Guards indicates exact cutting lineVinyl and Rubber Seats feature peel/stick construction for quick and easy replacement.
Use with Guide Rail Clamps (194385-5) for added security when cutting smooth materials (not included).
Use with Bevel Guide (194433-0) for quick and accurate setting and cutting of angles (not included).
Can be cut to suit specific applications where shorter lengths are required.
Can be combined in sequence with Guide Rail Connectors (P-20177) where longer lengths are required (not included).
Features of the BP-10085 Guide Rail Connector Set:
Clip set to join town makita guide rails.
Guide rail connectors.
Grubscrew RS530-006.
Hex Wrench 783201-2.
Automatic Torque Drive Technology automatically changes the cutting speed according to load condition for optimum operation. Other features include a variable speed control dial, depth stopper for splinter free cutting and positive stop for bevel adjustment.
Comes with the Auto-Start Wireless Unit.
The wireless unit connects to compatible dust extractors via Bluetooth®. The dust extractor then automatically runs while the switch is on and off when the machine is switched off.The Makita DSP601 Twin 18v (36v) LXT Brushless 165mm (6-1/2”) Plunge Circular Saw delivers precise and more accurate cutting when combined with the Makita guide rail system (sold separately). The saw and rail system work together to produce accurate cuts with minimal tear-out. The saw combines a powerful Makita-built brushless motor powered by two 18 V LXT batteries with Automatic Torque Drive Technology (ADT) Technology, which adjusts cutting speed and torque during the cut for optimum performance.
The added feature from the DSP600 is that this DSP601 has Auto-Start Wireless System (AWS) - which connects to the compatible DVC864LZ Dust Extractor with Bluetooth. The dust extractor automatically runs while the switch is on.
The Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 56mm cutting capacity at 0°, with a bevel capability of -1° to 48° and positive stops at 22.5° and 45°. When used with a rail system (sold separately) this Plunge Circular Saw is a more portable option to a table saw for select applications, and is ideal for use on the job site or in a workshop.
Features
2x 18 volt LXT batteries - More power, speed and run time without the hassles of a cord (sold separate)
AWS - Auto-Start Wireless System
connects to compatible dust extractors with Bluetooth. The dust extractor automatically runs while the switch is on
ADT - Automatic Torque Drive Technology automatically changes the cutting speed according to load conditions for optimum operation
Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge
Variable speed control dial - 2,500 - 6,300 RPM for optimum performance in a variety of materials
Close to the wall cutting for expanded cutting applications
Ideal for cutting large wood panels - other wood materials including melamine and MDF, aluminium, and Corian® with optional, material specific blades
Large cutting capacity - 56mm at 0º; and 40mm at 45º
Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º
Electronic speed control maintains constant speed under load for smooth cutting
Soft start feature for smooth start-ups
Easy-to-set depth adjustment with large scale
Smooth and convenient plunge release lever for operator comfort
Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
On-board hex wrench for fast and easy blade changes
Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
Built-in depth stop allows a preliminary first cut of 2 to 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting
Rubberised soft grip handle provides increased comfort on the job
Large rear dust port directs material away from the operator and easily connects to a vacuum system
Slide lever on saw base designed to engage the optional guide rail (sold separately) when bevel cutting for stability
Electric brake for maximum productivity
Compact and ergonomic design and lightweight for reduced operator fatigue
Precise straight and 45º bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail (sold separately)
3-stage L.E.D. gauges indicate battery charge levels
Features of the 194368-5 Guide Rail:
1500mm
Extruded Aluminum Construction.
Ideal for use with sheet materials, including plywood, panelling, etc.
Vinyl Seat on top side enables SP6000 to slide smoothly and freely.
Rubber Seats on underside grip most materials to secure rail when cutting.
Rubber Splinter Guards indicates exact cutting lineVinyl and Rubber Seats feature peel/stick construction for quick and easy replacement.
Use with Guide Rail Clamps (194385-5) for added security when cutting smooth materials (not included).
Use with Bevel Guide (194433-0) for quick and accurate setting and cutting of angles (not included).
Can be cut to suit specific applications where shorter lengths are required.
Can be combined in sequence with Guide Rail Connectors (P-20177) where longer lengths are required (not included).
Features of the BP-10085 Guide Rail Connector Set:
Clip set to join town makita guide rails.
Guide rail connectors.
Grubscrew RS530-006.
Hex Wrench 783201-2.
Bare Tool - No Battery or Charger Supplied
Features
- BrandMAKITA
- Voltage36 V
- MaterialAluminium
- Disc / blade diameter165 mm
- Power sourceCordless
