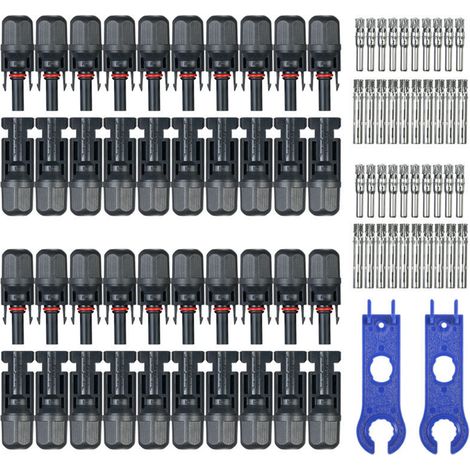

Male/female solar panel cable connectors, 20 pairs, with wrench, assembly tool for PV system
Sold by LOGGIN
You may also like
Compare with similar items
Product information
Description
These are connectors that are used to connect multiple solar panels or groups of solar panels together in a solar field, and are generally used in parallel applications. The included assembly tool allows users to tighten and separate the connectors more easily and quickly.
Features:
The conductor pin is made of tinned copper, ensuring excellent electrical contact.
The cable connection uses a rivet and lock method, making assembly quick and easy.
With excellent aging resistance and UV endurance, it can be used in harsh environments.
The O-ring on the connector is perfect for sealing against water and dust to prevent corrosion.
The included assembly tool facilitates tightening and separating the connectors.
An excellent solution for connecting multiple panels in parallel in a solar field.
Specifications:
Quantity: 20 pairs
Current rating: 16A (2.5㎡, AWG14), 30A (4㎡, AWG12), 52A (6㎡, AWG10)
Withstand Voltage: 1000V DC
Typical Contact Resistance: 2 mΩ
Suitable Cable Size: 2.5 mm² / 4 mm² / 6 mm²
Protection Class: Class II
Degree of Protection: IP67
Insulation Material: PC
Contact Material: Copper, Tin Plated
Flame Class: UL94-V0
Ambient Temperature Range: -40°C ~ +105°C
Insertion Force: Less than 50N
Removal Force: More than 50N
Package Weight: 221g-428g / 7.8oz-15.12oz
Note:
The key color (blue or orange) may vary slightly from the image shown.
List of Package includes:
20 * pairs of connectors
2 * keys
Features:
The conductor pin is made of tinned copper, ensuring excellent electrical contact.
The cable connection uses a rivet and lock method, making assembly quick and easy.
With excellent aging resistance and UV endurance, it can be used in harsh environments.
The O-ring on the connector is perfect for sealing against water and dust to prevent corrosion.
The included assembly tool facilitates tightening and separating the connectors.
An excellent solution for connecting multiple panels in parallel in a solar field.
Specifications:
Quantity: 20 pairs
Current rating: 16A (2.5㎡, AWG14), 30A (4㎡, AWG12), 52A (6㎡, AWG10)
Withstand Voltage: 1000V DC
Typical Contact Resistance: 2 mΩ
Suitable Cable Size: 2.5 mm² / 4 mm² / 6 mm²
Protection Class: Class II
Degree of Protection: IP67
Insulation Material: PC
Contact Material: Copper, Tin Plated
Flame Class: UL94-V0
Ambient Temperature Range: -40°C ~ +105°C
Insertion Force: Less than 50N
Removal Force: More than 50N
Package Weight: 221g-428g / 7.8oz-15.12oz
Note:
The key color (blue or orange) may vary slightly from the image shown.
List of Package includes:
20 * pairs of connectors
2 * keys
Features
- BrandOTHERS
- Connection configurationFemale
- ManoMano ReferenceME101600611
- MMID774049618194
- Product codeManoGBLX-260320-10259
- EAN9321185539699
