Description

General description

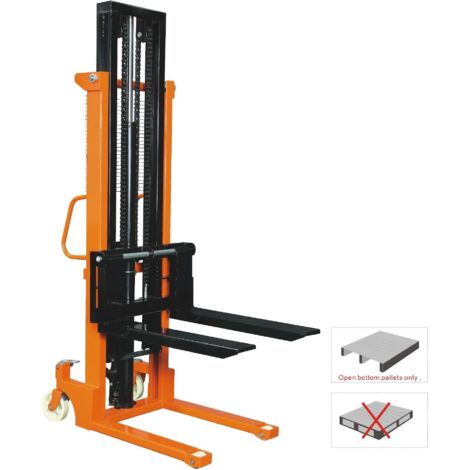

Manual Hydraulic Pallet Stacker 1T is designed for efficient lifting and transporting of pallets. This hand forklift lifter is ideal for job sites where a forklift or crane is not available or safe to use. With a maximum lifting capacity of 1 Ton, it provides a reliable solution for moving heavy loads to elevated positions.

Technical specifications

Max Capacity At 0.5M: 1000KGS (1.0 Ton)

Max Capacity At 2.5M: 500KGS (0.5 Ton)

Fork Width x Length: 150MM x 1150MM

Overall Fork Width: 530MM

Loading Centre On Forks: 600MM

Minimum-Maximum Fork Height: 85 - 2590MM

Lifting Height Per Stroke: 15MM

Overall Length x Width x Height: 1740MM x 730MM x 1840MM

Overall Height When Fully Raised: 3150MM

Installation

Simple one-man operation for easy control.

Operated through a lever that pumps the forks up when pulled downwards.

Foot pump located below the lever for quicker lifting.

Handle at the top of the lever is used to lower the forks or lock them in place.

Usage

Ideal for lifting pallets to high places.

Can turn 360° on the spot for maneuverability.

Rear wheels equipped with a foot brake catch for added safety.

High visibility bright orange paint enhances safety features.

Forks remain steady while wheeling around to prevent items from falling off.

Features

Brand
SECUREFIX DIRECT
Length
174 cm
Width
73 cm
Height
1.84 m
Weight
1000 kg

Manual Hydraulic Pallet Stacker 1T (Hand Forklift Lifter 2.5M)
