Manual tile cutter push engraving 125 cm Battipav super pro evo 125
Product information
Description

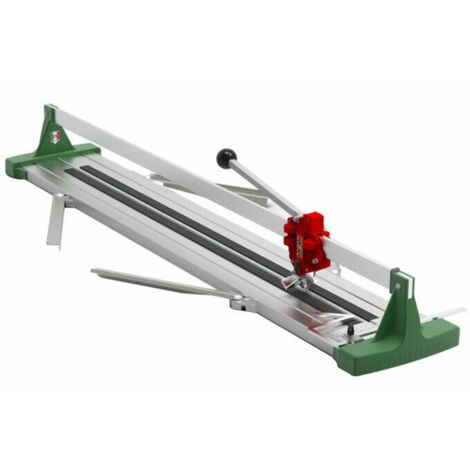

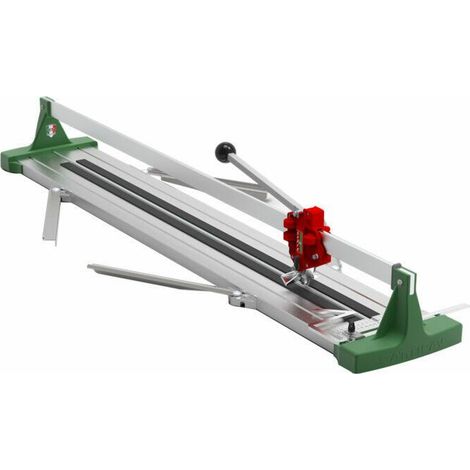

SUPER PRO EVO 125 from Battipav is a professional tile cutter with push engraving for straight and diagonal cuts of ceramic, single-fired tiles and stoneware.
Structure in drawn aluminum for maximum solidity and at the same time lightness, easy to transport.
Tile support made of aluminum with visible millimetric scale. Direct reading square for diagonal cuts. Direct reading ruler for straight cuts.
The carriage is equipped with nine ball bearings, four of which are adjustable, which guarantee perfect smoothness and maximum precision.
In each Battipav SUPER PRO EVO model, lateral extensions have been designed according to the length.
Technical data:
Max cutting length: 1250 mm
Max tile format for diagonal cutting: 884 × 884 mm
Cutting thickness: 4 - 18 mm
Cutting method: push engraving
Engraving wheel diameter: 22mm
Worktop size: 1250 x 220 mm
Side extensions: 4
Machine dimensions: 1503 x 340 x 265 mm
Packaging dimensions: 1600 x 300 x 210 mm
Gross/net weight: 13.7/11.5 kg
Features
- BrandBATTIPAV
- Cutting length125 cm
- Disc / blade diameter22 mm
- Height265 mm
- Suitable forMineral / stone
- Handle material typeAluminium
- MaterialAluminium
- power supplyManual
- ManoMano ReferenceME89371294
- MMID248903616415
- Product code166.35125
- EAN8021410065917
