Product information
Description

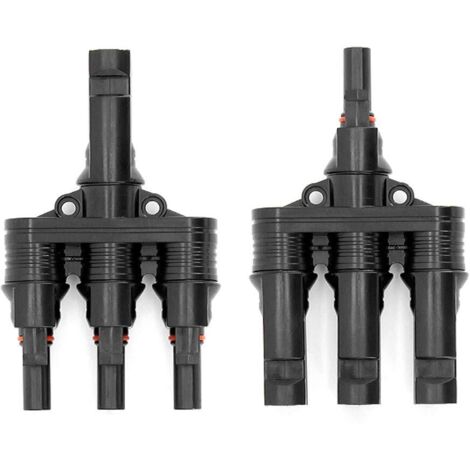

Compatible: A pair of MC-4 T-branch cable connectors, 1 piece 1 male to 3 female (M/3F) and 1 piece 1 female to 3 male (F/3M), suitable for all Photonic Universe solar panels and most other solar panels.
Technical specifications: Rated current: 50A - Rated voltage: DC1000V - Flame retardant level: UL94-V0 - Ambient temperature: -40℃ ~ +90℃.
High-strength insulating waterproof silicone ring, IP67 waterproof, dustproof and UV resistant, TUV approved cable.
The housing is made of high-strength PPO plastic, durable, radiation resistant, durable at low temperatures, high strength, impact resistance, flame retardant.
The male and female connectors have a stable self-locking system and are easy to insert and remove. Quick and easy installation and easy removal of the plugs without the need for additional tools.
Specification:
Condition: 100% new
Working current: 50A
Voltage: DC1000V
Contact resistance: 0.35 mΩ
Cable outer diameter range: 3 mm - 7.5 mm
Ambient temperature: - 40 ℃ ~ +135 ℃
Protection level: IP68
Safety level: II
Insulation force: ≤ 50 N
Extraction force: ≥ 50 N
Insulation material: PPO (black)
Contact material: copper, nickel-plated
Flame retardant class: UL94-VO
Terminal connection: pressure welding
Package included: 1 pair of PV solar panel cable connectors
Features
- BrandMEMKEY
- Pcs per pack2
- Connection configurationM-F
- Availability of spare parts1 year(s)
- Height12 mm
- IP ratingIP68
- Amperage50 A
- Width20 mm
- Length5.99 cm
- MaterialCopper
- Weight150 g
- Terminal PolarityPair
- Power1 W
- ManoMano ReferenceME78249106
- MMID841579023411
- Product codeMM-FR6386
- EAN9168919577516
