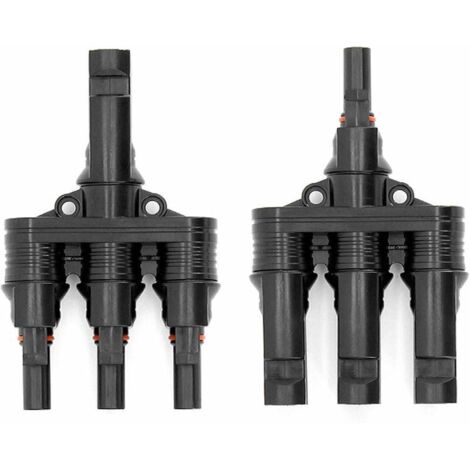

MC-4 Connector, Male/Female T-Connector for Solar Panels MC-4 Parallel PV Connection Clip Plug Solar Energy Adapter Separator Coupler Combiner (M/3F, F/3M)
Of which environmental contribution £0.01 including VAT.
Sold by CHAO WORLDWIDE
You may also like
Compare with similar items
Product information
Description
General Description
MC-4 connectors are designed for parallel connections of solar panels. This model includes a pair of connectors: one male to 3 females (M/3F) and one female to 3 males (F/3M). They are compatible with all Photonic Universe solar panels and most other solar modules.Technical Specifications
- Rated Current: 50A
- Rated Voltage: DC1000V
- Flame Retardant Rating: UL94-V0
- Ambient Temperature: -40℃ to +135℃
- Contact Resistance: 0.35mΩ
- Cable Outer Diameter Range: 3mm - 7.5mm
- Protection Rating: IP68
- Safety Grade: II
- Insertion Force: ≤ 50N
- Removal Force: ≥ 50N
- Insulation Material: PPO (Black)
- Contact Material: Copper, Nickel-plated
Compatibility and Accessories
- Compatible with all Photonic Universe solar panels
- Suitable for most other solar modules
Installation
- Quick and easy assembly
- Easy removal of caps without additional tools
Use
- Ideal for parallel connections of solar panels
- Self-locking system for a stable connection
Other Information
- High-strength insulating silicone waterproof ring
- IP67 waterproof, dustproof, and UV resistant
- High-strength PPO plastic housing, durable and radiation resistant
Features
- BrandXISRENS
- Length1 cm
- Width10 mm
- Height10 mm
- Power1 W
