MC4 solar connection cable, Y-shaped photovoltaic panel connection cable, IP67 waterproof, for solar panels.
You may also like
Compare with similar items
Product information
Description
Product Information

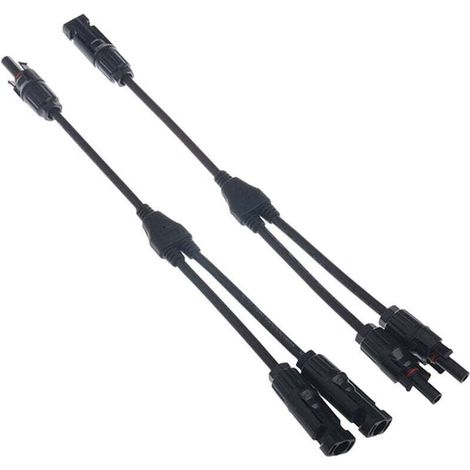

Name: MC4 Y-Type Parallel Splitter
Color: Black
Features
This Y-shaped T-branch with wire is compatible with the MC4 connector. It is a special branch for the parallel connection of photovoltaic solar modules. It is a good choice for distributed systems. Anti-aging, anti-ultraviolet capability, the cable connection is made by crimping and tight clamping, and the male and female connectors are equipped with a stable automatic locking mechanism, which can be opened and closed freely.
Technical parameters:
Operating current: 20A (4mm²), 30A (6mm²)
Withstand voltage: DC1000V.
Contact resistance: 2 Ω
Insulation resistance: 500 Ω
Applicable single-core cable cross-section: 2.5 mm², 4 mm², 6 mm²
Cable outer diameter range: 5 mm ~ 7 mm
Ambient temperature: -40℃～ +105℃
Protection rating: IP67.
Security Level: Two
Shell: PPO.
Contacts: Copper CN, Tin SN
Terminal Connection Method: Crimping
Features
- BrandODIPIE
- Connection configurationM-F
- IP ratingIP67
- Solar panel accessory typeFitting
- ManoMano ReferenceME100611879
