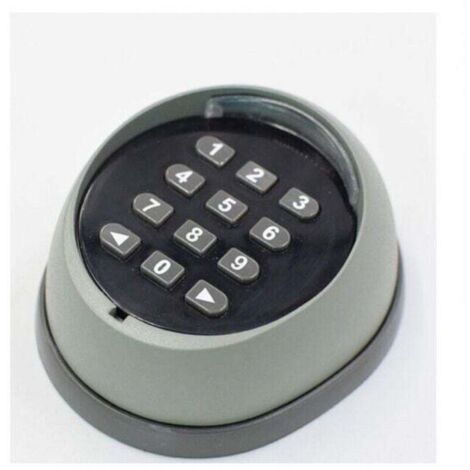

Metal keypad for garage door openers, 433 MHz rolling code keypad, high-quality keypad for garage door access control, black and grey (random colors)

General Description

This keypad is ideal for folding and revolving doors and offers convenient access control. Thanks to its waterproof design and LED lighting, it is also easy to use at night. Compact and easy to use, it allows code entry when the remote control is unavailable.

Technical Specifications

• Power supply: CR2032 lithium battery (230 mAh)
• Battery life: approximately 1 year (based on 10 uses per day)
• Operating frequency: 433.92 MHz ± 75 kHz
• Transmission power: approximately 1 mW
• Encoding format: Standard rolling code
• Operating temperature: -20 °C to +55 °C
• Number of digits in the password: 0 to 8 digits
• Range: 50 meters outdoors, 35 meters indoors
• Protection rating: IP54
• Dimensions: 85 × 75 × 35 mm
• Weight: 150 g

Compatibility and Accessories

• Compatible with folding and hinged doors

Installation

Designed for easy indoor and outdoor installation, ensuring optimal security.

Operation

Enter the password to activate the system. The code changes with each transmission for security reasons.

More information

• Estimated transmission range: 200 m outdoors and 35 m indoors
• Battery life: approximately 2 hours for 10 transmissions per day.
•
•
