Metric, Imperial, and American SAE Whitworth 55-degree screw gauge, metric 60-degree and US 60-degree thread pitch gauge for industrial measurement
You may also like
Compare with similar items
Product information
Description

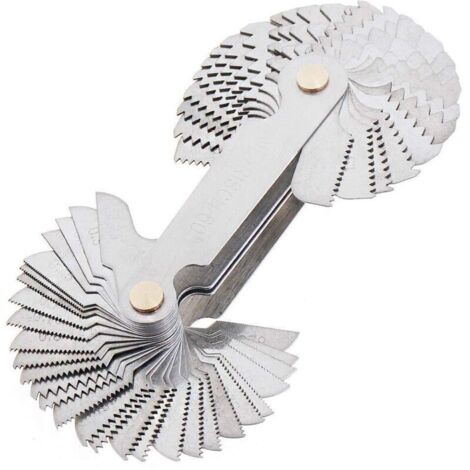

It is a 55-degree and 60-degree thread/pitch gauge with a locking device. Generally used to verify that the thread size determination is correct.
Specification: Metric & Imperial & US; Metric: 6.0, 5.5, 5.0, 4.5, 4.0, 3.5, 3.0, 2.5, 2.0, 1.75, 1.5, 1.25, 1.0, 0.9, 0.8, 0.75, 0.7, 0.6, 0.5, 0.45, 0.4, 0.35, 0.3, 0.25 /p>
Imperial: 4G, 4 1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G, 30G, 32G, 36G, 40G, 48G, 60G, 62G; US: 8, 10, 11, 14, 19, 28
It is useful to check the tool angle when cutting threads on a metal lathe; Check the angle of the thread cutting tool on the V-groove of the gauge. The entire blade is made of stainless steel with a wire-drawn surface, making it resistant to rust. This ensures accurate measurement.
Features
- BrandTEHTUY
- Length1 cm
- Warranty1 year(s)
- Pcs per pack1
- Availability of spare parts1 year(s)
- Width1 cm
- MaterialCross-linked Polyethylene
- Weight100 g
- Measurement typeMechanical
- Type of angle protractorMechanical protractor
- ManoMano ReferenceME98872339
- MMID745222146567
- Product codeZJL-mano-03218
- EAN6282768105706
