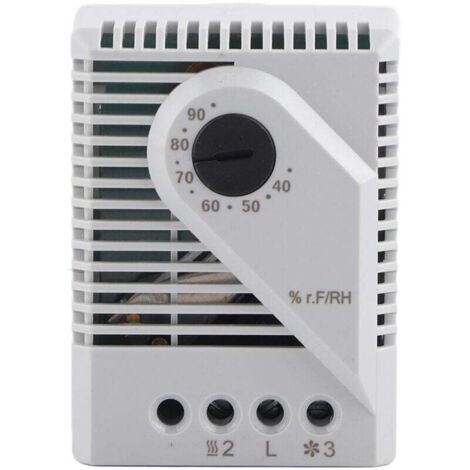

MFR012 Humidity Controller, Mechanical Humidity Controller, Hygrostat for Dehumidifiers, Humidifiers, Reptile Houses, Exhaust Fans, Fermentation (MFR012)
Of which environmental contribution £0.01 including VAT.
Buying for your business?
Negotiated prices excl. VAT up to -20%
Sold by LinzGain Sarl
You may also like
Compare with similar items
Product information
Description
1. 2.5 mm² cable with 2-3 pin connectors, pin 1 is the active input, pin 2 is the neutral output. Supports a wide input voltage range of 12 to 250 V. 2. Rear rail mount for easy installation on 35 mm rails. 3. Polycarbonate (PC) housing features high heat resistance, impact resistance, and other excellent physical and mechanical properties. 4. Excellent electrical insulation, elongation, dimensional stability, and chemical resistance. High durability. 5. The MFR012 mechanical humidity controller regulates electric heating to raise the dew point, and therefore the relative humidity, to above 65% at a critical time. This effectively prevents condensation and corrosion. Specifications: Item type: Humidity controller Technical data: 4% relative humidity (tolerance ±3%) Permissible air flow: 15 m/s Contact type: Transducer contact Contact resistance: <10 mΩ Service life: >100,000 switching cycles Rated current: 20 V AC/DC 100 mA Voltage and current: 250 V AC, 5(1) A 250 V AC 5(1) A DC 20 W DC 20 W Electromagnetic compatibility: EN61000-3-2, EN61000-3-35 5014-1-2 Connection: 1.5 mm² - 3-pole terminal 2.5 mm, max. tightening torque 0.5 Nm: 2.5 mm solid wire, 1.5 mm stranded steel (end with wire) Mounting: 35 mm DIN rail, EN50022 Housing: Plastic according to UL94V-0, light gray Dimensions: 67 x 50 x 38 mm / 2.64 x 1.97 x 1.5 in Weight: 60 g / 2.12 oz (approx.) Operating/storage temperature: 0 to +60 °C (+32 to +140 °F) / -20 to +80 °C (-4 to +176 °F) Protection class: IP20 Certification: CE *50% RH
Package contents:
1 x Humidity ControllerNote:
Please note that new and old versions of this product will be Shipped randomly. Please consider this before ordering.Features
- BrandSNQ
- MaterialPlastic
- ColourLight grey
- Weight60 g
- Pcs per pack1
- Length6.7 cm
- Height38 mm
- Width5 cm
- ManoMano ReferenceME92186269
- MMID718319403825
- Product codeFD-05278
- EAN6190246974303
