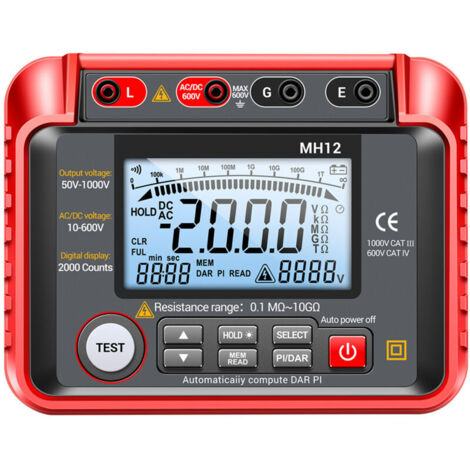

MH12 1000V Red Insulation Tester (Battery Not Included)
You may also like
Compare with similar items
Product information
Description
General Description
The MH12 insulation tester is a digital megohmmeter designed to measure insulation resistance in various electrical equipment. It is ideal for applications such as transformers, generators, high-voltage cables, electric motors, surge protectors, and industrial equipment.
Technical Specifications
- Power Supply: 8 AA batteries (not included)
- Accuracy: ±2% + 5 digits
- Display: 2000-count LCD
- Dimensions: 172.7 x 140.3 x 62.3 mm
- Weight: 621.9 g (unit only)
Compatibility and Accessories
- 1 Digital Megohmmeter
- 2 Test Leads (1 m)
- 2 Alligator Clips
- 1 Carrying Case
- 1 Manual Instructions for use (English)
Installation
Before using the tester, ensure that there is no voltage on the circuit to be tested.
Operation
The tester automatically measures insulation resistance in a range of 0.1 MΩ to 20 GΩ, with 5 adjustable voltage ranges: 50V, 100V, 250V, 500V, and 1000V DC. It also features a high-voltage activation indicator light and dual AC/DC voltage measurement (10V to 600V) with frequency detection from 40-70 Hz.
Other information
The structure is waterproof (IP54), allowing for outdoor use. The tester is also equipped with enhanced safety features, such as short-circuit protection and automatic discharge after testing.
Features
- BrandXISRENS
- Height1 cm
- Voltage1 V
- Amperage1000 mA
- MaterialLinden
