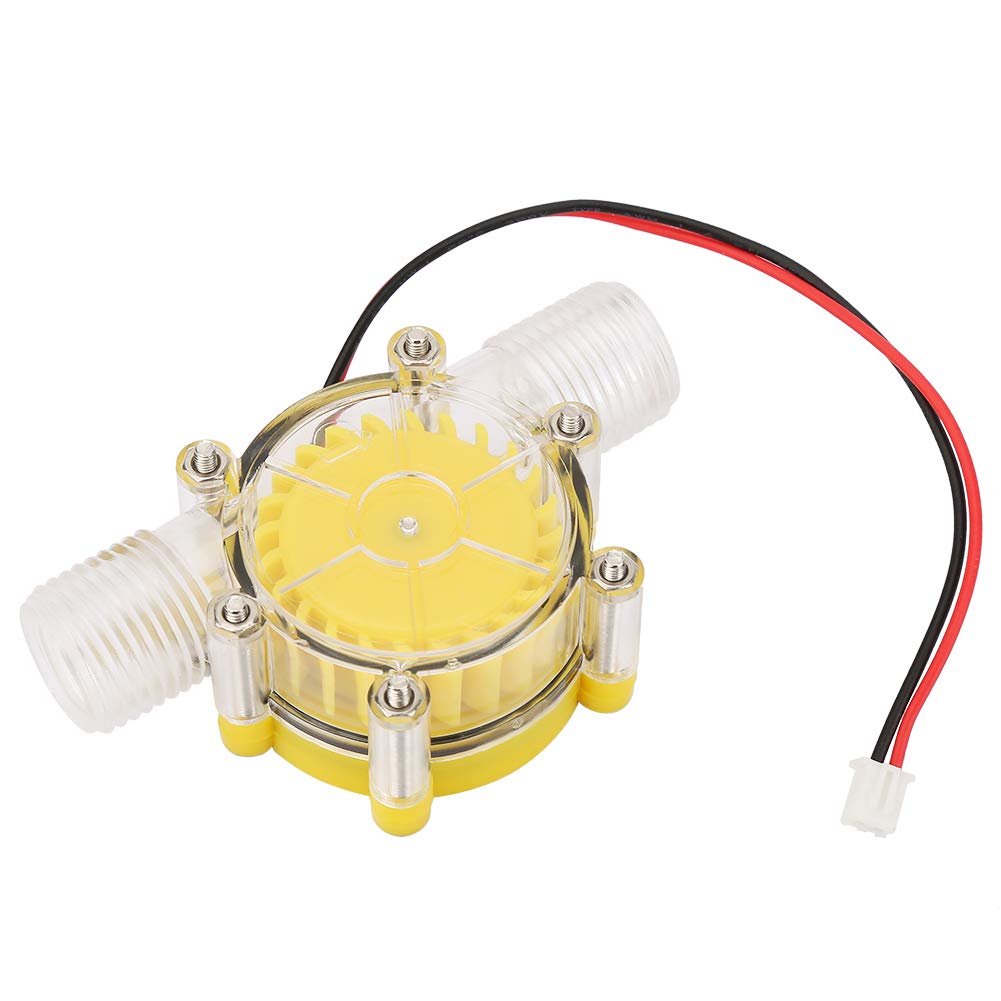

Micro-Hydro DC Water Turbine Generator, Hydraulic Power Generator, Micro Generator F50, Micro-hydro DC Water Flow Pump, Turbine (F50 12V Yellow Transparent)

General Description

This DC micro-hydraulic water turbine generator is designed to provide an efficient and sustainable renewable energy solution. Made from high-quality materials, it ensures extended use with stable performance and low noise levels. Its compact and lightweight design makes it easy to install, making it an ideal choice for DIY and home improvement projects.

Technical Specifications

• Condition: 100% Brand New
• Weight: 90 g / 3.2 oz
• Color: Yellow
• Voltage: 5V, 12V, 80V (Optional)
• Maximum Output Voltage: 80V (1.2 MPa)
• Maximum Output Current: 220 mA (12V)
• Line-to-Line Resistance: 10.5 ± 0.5 Ω
• Insulation Resistance: 10 mΩ (Tramegger DC100)
• Maximum Closed Output Pressure: 0.6 MPa
• Maximum Open Output Pressure: 1.2 MPa
• Starting water pressure: 0.05 MPa
• Axial clearance: 0.2-1.0 mm
• Mechanical noise: ≤55 dB
• Generator life: ≥3000 h

Package list

• 1 x micro generator
