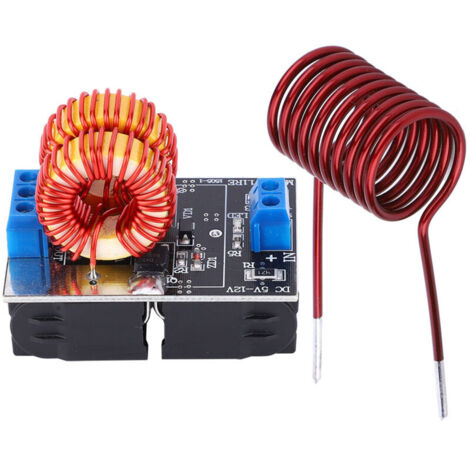

Mini carte de chauffage ZVS DC512V 120W Inductive Flyback Heating Driver Ignition Coil--
You may also like
Compare with similar items
Product information
Description
1. This is a mini ZVS board without a tap, heating coil, transformer, cooling fan, etc.
2. The maximum power is 120W (12V induction heating). With a 12V transformer, the primary winding is 5+5 turns, approximately 30W.
3. Input voltage DC 5V~12V. This voltage range is the operating voltage, not the voltage when the power supply is empty! (Voltages above 12V or below 5V cannot be guaranteed to function normally.) 4. Ensure all components are correctly soldered, that the positive and negative terminals of the power cord are not connected backwards, and once the load (heating coil, transformer) is connected, then apply power! Do not turn on when unloaded, as this will easily damage it. 5. When heating by induction, generally operate for 5 minutes to turn off the cooling. Since the current is relatively high during induction heating... During induction heating, the heat from the coil is also relatively significant. During heating, some of the heat generated by the object being heated is transferred to the coil. Over a long period, the coil's temperature remains high. If the coil is connected to the terminal, the plastic part of the terminal will melt! Therefore, it is preferable to solder the coil directly to the PCB during induction heating. Please pay attention to this point.
Specifications
Item Type: Induction Heating Panel
Maximum Power: 120W (12V Induction Heating)
Package List
1x Module
1x Coil
Features
- BrandSNQ
- Length15 cm
- Width100 mm
- Height30 mm
- Weight110 g
