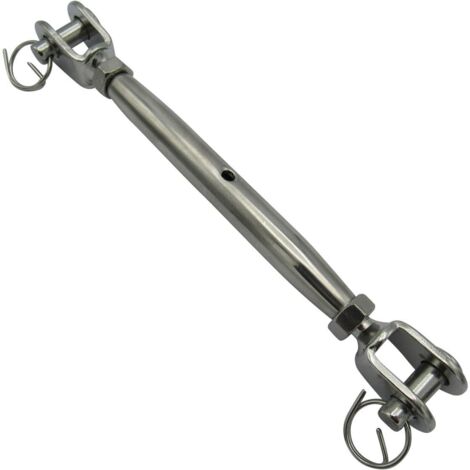

Mini Stainless Steel Rigging Screw Jaw & Jaw M10 (Marine Boat Closed Fork Turnbuckle)

Sold by SecureFix Direct

Product information

Description

General description

Mini Stainless Steel Rigging Screw Jaw & Jaw M10 is designed for various applications, particularly for handrail wires and general purposes. These rigging screws are highly favored in the marine industry due to their construction from 316 grade stainless steel, which provides excellent rust protection.

Technical specifications

Thread Diameter: 10MM

Available Codes and Specifications:

SFSSMRJJ04 - Breaking Load: 340 KG, A: 4 MM, B: 45 MM, C: 82 MM, D: 3.7 MM, E: 6 MM, F: 108 MM

SFSSMRJJ05 - Breaking Load: 570 KG, A: 4.8 MM, B: 59 MM, C: 97 MM, D: 4.9 MM, E: 7 MM, F: 137 MM

SFSSMRJJ06 - Breaking Load: 750 KG, A: 6 MM, B: 70 MM, C: 114 MM, D: 6 MM, E: 8 MM, F: 168 MM

SFSSMRJJ08 - Breaking Load: 1400 KG, A: 7.8 MM, B: 69 MM, C: 123 MM, D: 8 MM, E: 11.2 MM, F: 170 MM

SFSSMRJJ10 - Breaking Load: 2200 KG, A: 9.5 MM, B: 92 MM, C: 163 MM, D: 9.9 MM, E: 12.2 MM, F: 220 MM

Other information

Product Code: SFSSMRJJ10

Manufactured from 316 grade stainless steel for superior rust protection

Free delivery available

Features

Brand
SECUREFIX DIRECT
Maximum load
2200 kg
Length
1 cm
Material
Stainless steel
Warranty
1 year(s)
